Sakkeli Super

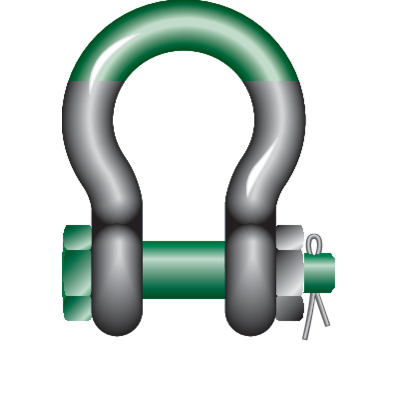

Bow shackle with safety bolt.

Handling of the shackle is easy due to the smaller size and weight. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of i

Näytä lisää

3,3
  • 3,3
  • 5
  • 7
  • 9,5
  • 12,5
  • 15
  • 18
  • 21
  • 30
  • 40
  • 55
  • 85
  • 120
  • 150
  • 175
Tuotekoodi: 420100330590

Bow shackle with safety bolt.

Handling of the shackle is easy due to the smaller size and weight. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread.

Certification: This product can be supplied with works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 150 tons are supplied with a Lloyd’s Register of Shipping Certificate on proof load.

Standard: Meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B.

  • Materiaali: Lämpökäsitelty teräs luokka 8. Lämpökäsittely kielletty.
  • Merkintä: CE-merkintä, WLL.
  • Lämpötila-alue: -20°C - +200°C.
  • Pintakäsittely: Kuumasinkitty (175 t maalattu).
  • Varmuuskerroin: 5:1
  • Luokka: 8
Dokumentit

Käyttöohjeet
