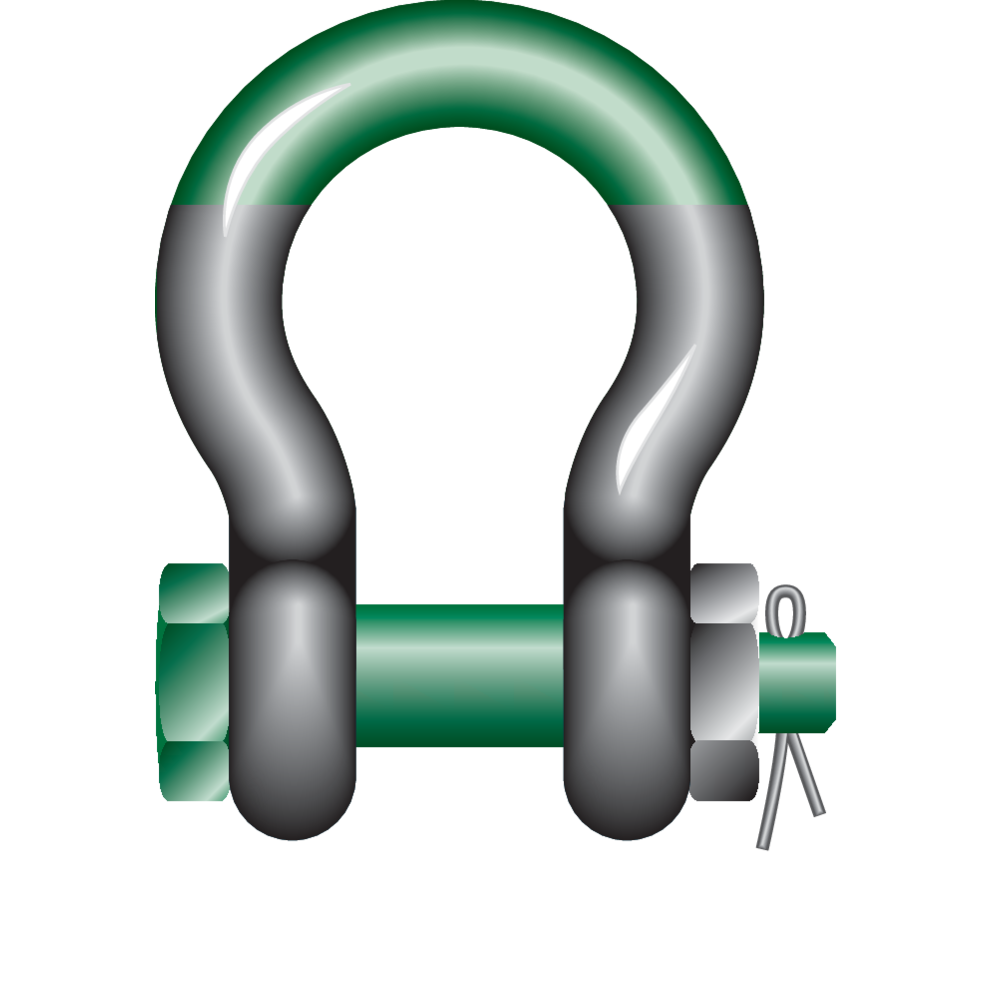

Super Shackle G-5263

Bow shackle with safety bolt.

Handling of the shackle is easy due to the smaller size and weight. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread.

Certification: This product can be supplied with works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 150 tons are supplied with a Lloyd’s Register of Shipping Certificate on proof load.

Standard: Meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B.

  • Material: Bow and pin alloy steel, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -20°C up to +200°C
  • Finish: Hot dip galvanized (175 ton shackle is painted)
  • Note: Shackles with WLL 150 ton and 175 ton have a round headed bolt
  • Safety factor: 5:1
  • Grade: 8
