Gunnebo Industries

Design: Forged according to Swedish standard 1577 type C.



Proof: 2 x WLL.

  • Material: grade 3.
  • Marking: WLL, supplies code and grade.
  • Finish: Galvanized.
  • Safety factor: 4,5:1.

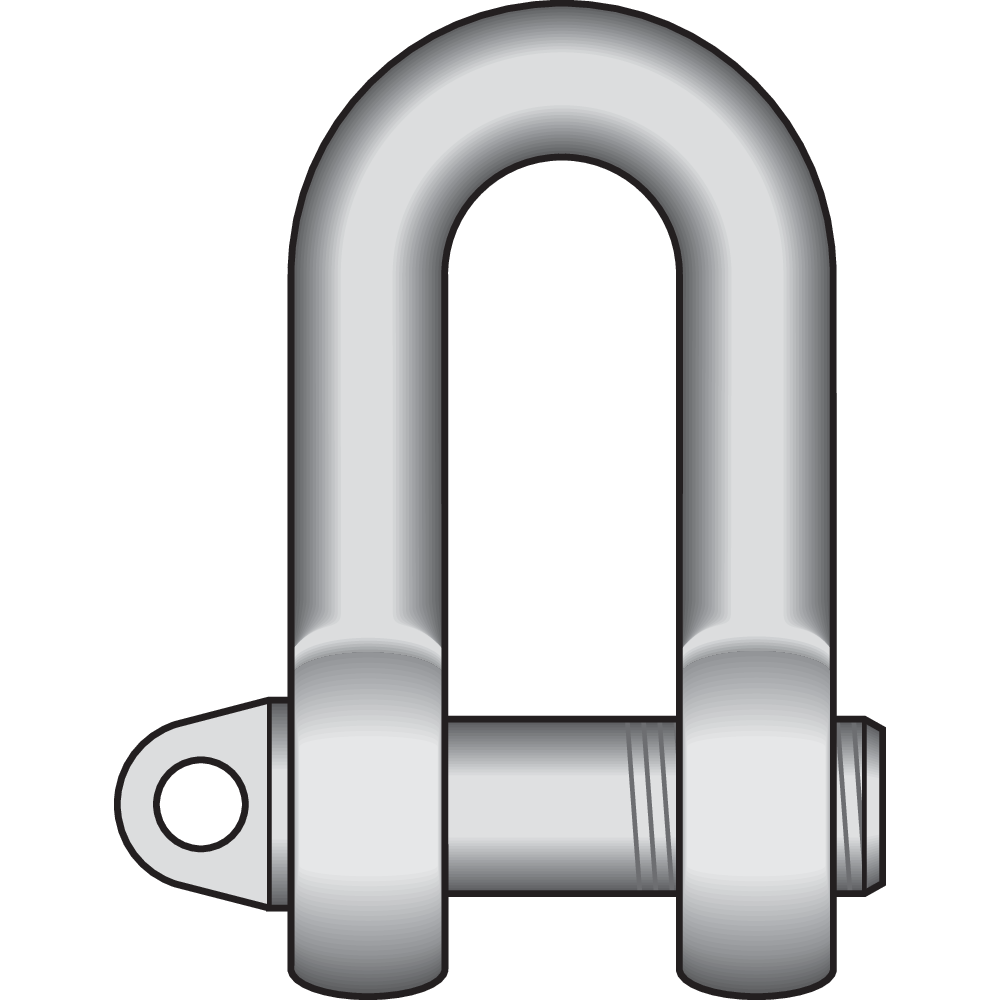

101_e_225mm
2929_lom_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Thread d1 D2
mm
A
mm
c*
mm
D
mm
Weight
kg
11.391577C006 106 0,6 M10 20 15 30 8,5 0,1
11.391577C009 107 0,9 M12 28 20 39 11 0,2
11.391577C015 108 1,5 M16 33 24 52 13 0,4
11.391577C024 109 2,4 M20 40 28 65 16 0,65
*Tolerance: +/- 5%
