Inspection and Maintenance

Examination and repair

Before each use, the sling should be inspected for defects and to ensure that the identification and specification are correct. A sling that is unidentified or defective should never be used, but should be referred to a competent person for examination.

During the period of use, frequent checks should be made for defects or damage, including damage concealed by soiling, which might affect the continued safe use of the sling. These checks should extend to any fittings and lifting accessories used in association with the sling. If any doubt exists as to the fitness for use, or if any of the required markings have been lost or become illegible, the sling should be removed from service for examination by a competent person.

Examination periods should be determined by a competent person, taking into account the application, environment, frequency of use and similar matters, but in any event, slings should be visually examined at least annually by a competent person to establish their fitness for continued use.

Records of such examinations should be maintained.

Any damage evident in the cover indicates potential damage to the loadbearing core.

Damaged slings should  be withdrawn from service.

WARNING! Never attempt to carry out repairs to the slings yourself. Roundslings should not be stored in direct sunlight or sources of ultraviolet radiation.

Examples of conditions likely to affect continued safe use:

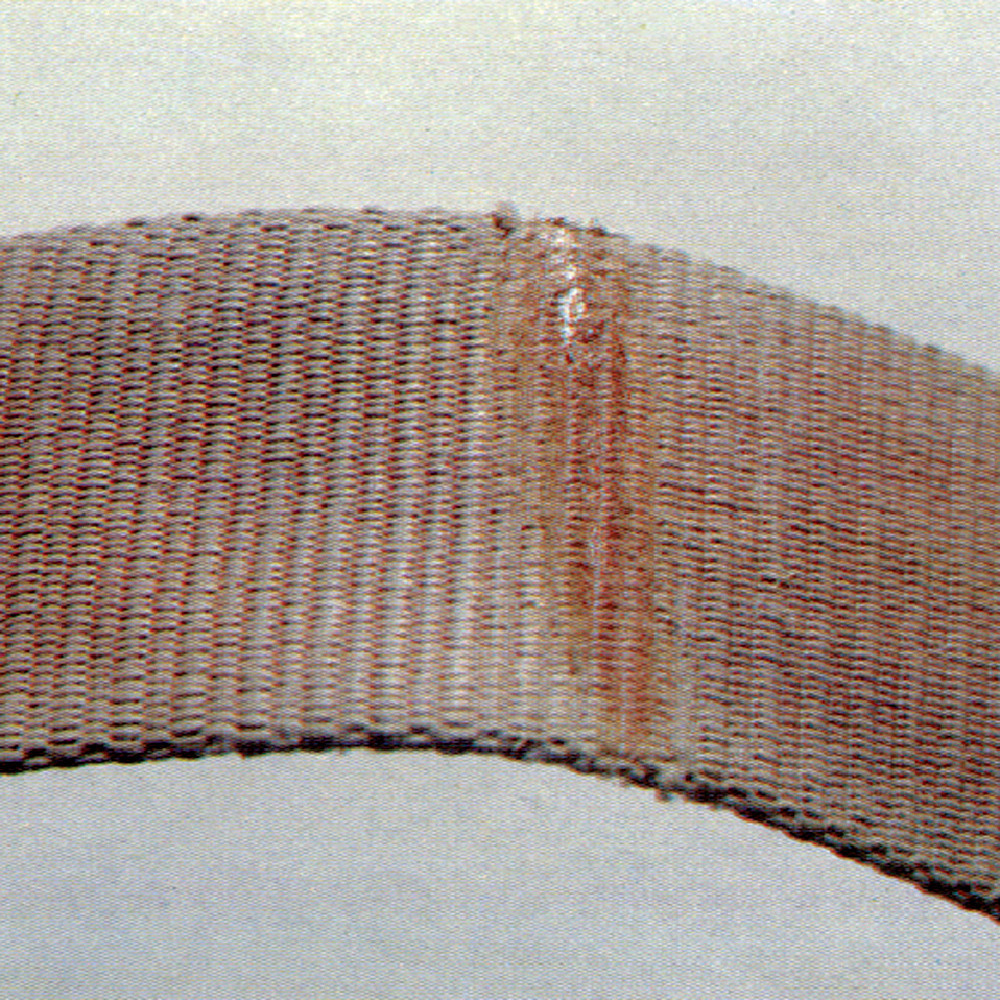

Surface chafe, in normal use, some chafing will occur to the surface fibres of the cover. This is normal and has little effect. Still, this effect vary and when the progress proceed some loss of strength can be expected.

Any substantial chafe, particularly localized, should be viewed critically. Local abrasion, as distinct from general wear, can be caused by sharp edges whilst the sling is under tension, and can lead to the cover becoming cut and/or serious loss in strength.

Cuts in the cover, cross or longitudinal, or any damage to the stitching, raise serious doubts as to the integrity of the core.

Cuts on the strop, cross or longitudinal, cuts or rub of edges, cut through seams or eyes.

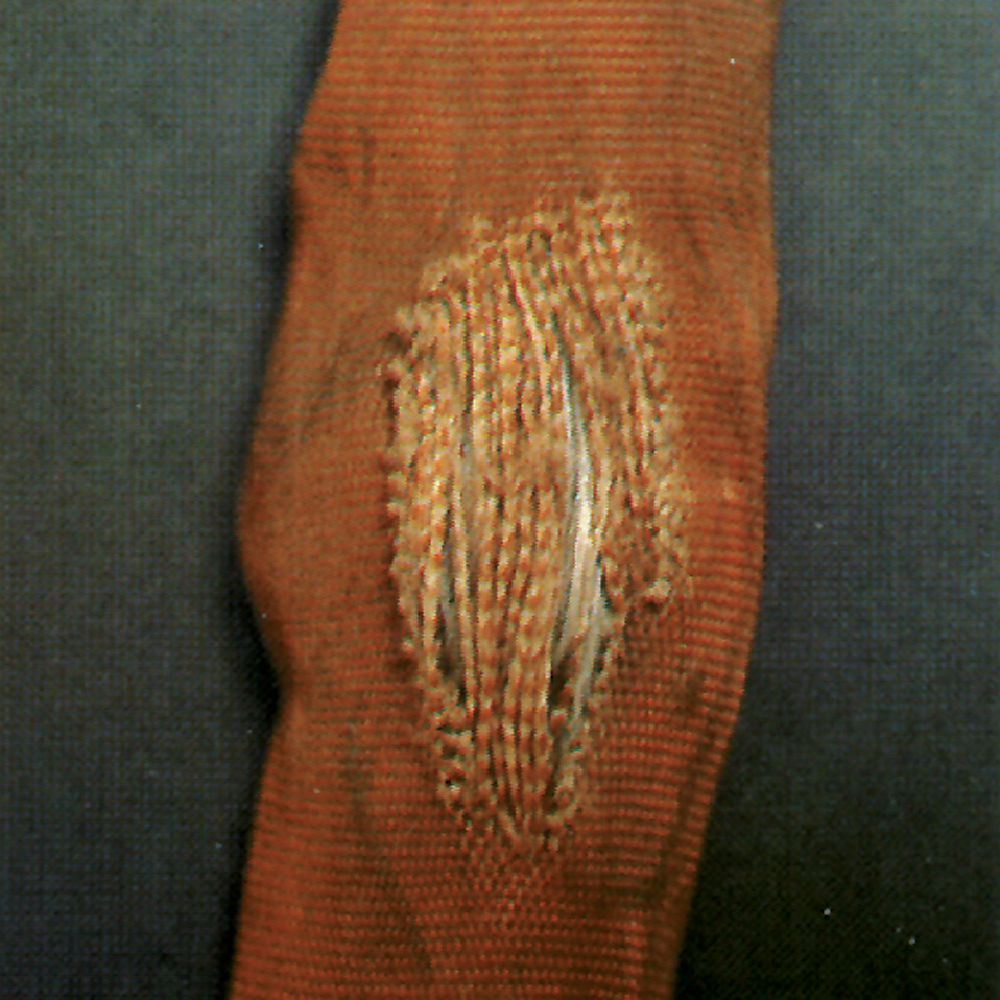

The core of the round sling is exposed.

Chemical attack, results in local weakening and softening of the material. This is indicated by flaking of the cover surface which may be plucked or rubbed off.

Heat or friction damage. This is indicated by the fibres of the cover material taking on a glazed appearance and in extreme cases, fusion of the fibres can occur, indicating a weakening of the core.

Damaged or deformed fittings.

General thumbnail
2973_staffan.eps
General image 2973_staffan.eps

Use of Textile Slings

Use in adverse environments

Use in adverse environments or hazardous applications
The resistance to chemicals varies between the material from which round slings and webbing slings are manufactured.

The effects of different chemicals to synthetic fibres is summarized below:
a) polyester (PES) is resistant to most mineral acids, but is damaged by alkalis
b) polyamides (PA) are virtually immune to the effect of alkalis; however, they are attacked by mineral acids
c) polypropylene (PP) is little affected by acids or alkalis, and is suitable for applications where the highest resistance to chemicals, other than solvents, is required.
d) Dyneema® is very good resistant against acids and alkalis.

ATTENTION
Solutions of acids or alkalis which are harmless, can become sufficiently concentrated by evaporation and cause damage. Contaminated slings should be taken out of service at once, soaked in cold water, dried naturally and referred to a competent person for examination. In case of any doubts, always contact your supplier for more information.

Slings with grade 8/10/12 fittings and multi-leg slings with grade 8/10/12 master links should not be used in acidic conditions. Contact with acids or acidic fumes causes hydrogen embrittlement to grade 8/10/12 materials. If exposure to chemicals is likely, CERTEX should be consulted.

Temperature affects
Rounds lings are suitable for use and storage in the following temperature ranges:
a) polyester and polyamide: -40°C to +100°C,
b) polypropylene: -40°C to +80°C.
c) Dyneema® -50°C to +70°C.

At low temperatures ice formation will take place if moisture is present. This may act as a cutting agent and an abrasive causing internal damage to the sling. Further, ice will lessen the flexibility of the sling, in extreme cases rendering it unserviceable for use in extreme cases.

These ranges vary in a chemical environment, in which case the advice of CERTEX should be sought.

For drying the slings, limited indirect ambient heating, is acceptable within these ranges.
Dyneema® does not take up (absorb) water, unlike the other raw materials such as Polyester and polyamide.

Affects of ultra-violet radiation
The man-made fibres from which the round sling is produced are susceptible to degradation if exposed to ultra-violet radiation. Round slings should not be stored in direct sunlight or sources of ultraviolet radiation.

Before first use

Before first use of the sling it should be ensured that:
a) the sling corresponds precisely to that specified on the order;
b) the manufacturer’s certificate on hand;
c) the identification and WLL marked on the sling correspond with the information on the certificate;
d) the sling have been maintained.
e) the sling is suitable for intended lifting.

Safe use

Preparation
When selecting and specifying roundslings and webbing slings, consideration should be given to the required working load limit, taking into account the mode of use and the nature of the load to be lifted. The size, shape and weight of the load, together with the intended method of use, working environment and nature of the load, all affect the correct selection.

The selected sling should be both strong enough and of the correct length for the mode of use. If more than one sling is used to lift a load, these slings should be identical. The material from which the roundsling is made should not be affected adversely by the environment or the load.

Consideration should also be given to ancillary fittings and lifting appliance which should be compatible with the sling(s). Design of the slings end should also considered, i.e. if end fittings or soft eyes are suitable.

When a sling with soft eye are used together with a hook/fittings the smallest length should not be below 3,5 times the hook's/fitting's maximal thickness and the angel that form in the eye shall never, in any case, exceed 20°.

When a sling with soft eye is connected to a lifting device, the part of the device on which the slings eye lay should be straight if the slings bearing width are below 75 mm. In this case the attatchment to the lifting device have a bend radius by at least 0,75 times the sling's bearing width. Wide slings can be affected by the hook's inner radius, i.e. a to strong bend prevent equivalent load of the sling over its full width.

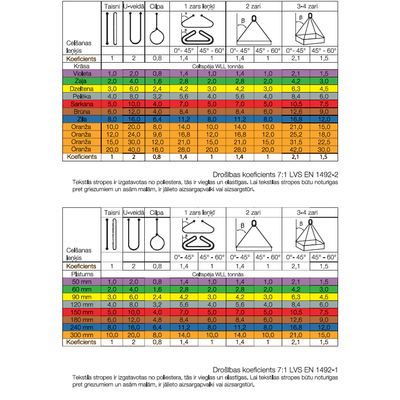

Roundslings should not be overloaded. The correct mode factor should be used (see table). Working load limits for some modes may be given on the label. In the case of multi-leg slings the maximum angle to the vertical should not be exceeded.

Slings should be protected from edgess, friction and wear, wether from the load as the lifting appliance. When strengthenings and protection against damage from corners and/or wear is supplied as a part of the sling/sling these shall be correctly positioned. It may be necessary to supplement with additional protection.

Method of connection
Good slinging practices should be followed: the slinging, lifting and lowering operations should be planned before commencing the lift.

Roundslings be should correctly positioned and attached to the load in a safe manner. Slings should be placed on the load such that they are able to adopt the flattened form and the loading is uniform across their width. They should never be knotted or twisted.

Stitches should never be positioned above hooks or other lifting appliance: the stiches should always be on the standing part of the strop.
Damage to labels should be prevented by keeping them away from the load, the hook and the angle of choke.

The load should be secured by the sling(s) in such a manner that it cannot topple or fall out of the sling(s) during the lift. Sling(s) should be arranged so that the point of lift is directly above the centre of gravity and the load is balanced and stable. Movement of the sling over the lifting point is possible if the centre of gravity of the load is not below the lifting point.

Basket hitch
When using basket hitch, the load should be secure since there is no gripping action as with choke hitch and the sling can roll through the lifting point. For slings which are used in pairs, the use of a spreader is recommended so that the sling legs hangs as vertically as possible and to ensure that the load is equally divided between the legs.

Choke hitch
When a sling is used in choke hitch, it should be positioned so as to allow the natural (120°) angle to form and avoid heat being generated by friction. A sling should never be forced into position nor an attempt made to tighten the bite. To secure a load a "double choke hitch" can be used, which provides greater security and helps to prevent the load sliding through the sling.

Symmetry of loading
In the case of multi-leg slings, the WLL values have been determined on the basis that the loading of the sling assembly is symmetrical. This means that when a load is lifted the sling legs are symmetrically disposed in plan and subtended at the same angle to the vertical.

In the case of 3 leg slings, if the legs are not symmetrically disposed in plan the greatest tension is in the leg where the sum of the plan angles to the adjacent legs is greatest. The same effect occurs in 4 leg slings except that the rigidity of the load should also be taken into account. With a rigid load the majority of the weight may be taken by only three, or even two, of the legs, with the remaining legs only serving to balance the load.


Safety of lifting
Care should be taken to ensure the safety of personnel during the lift. Persons in the danger area should be warned that the operation is to take place and, if necessary, evacuated from the immediate area.

Hands and other parts of the body should be kept away from the sling to prevent injury as the slack is taken up.

A test lift should be made. The slack should be taken up until the sling is taut. The load should be raised slightly and a check made that it is secure and assumes the position intended. This is especially important with basket or other loose hitches where friction retains the load.

If the load tends to tilt, it should be lowered and attachments re-positioned. The trial lift should be repeated until the stability of the load is ensured

Care should be taken when making the lift to ensure that the load is controlled, e.g. to prevent accidental rotation or collision with other objects.

Snatch or shock loading should be avoided as this will increase the forces acting on the sling.

A load in the sling or the sling itself should not be dragged over the ground or rough surfaces.

Landing the load
The load should be lowered in an equally controlled manner as when lifted. Trapping the sling when lowering the load should be avoided. The load should not rest on the sling if this could cause damage and pulling the sling from beneath the load when the load is resting on it should not be attempted.

Storage of strops/slings
On completion of the lifting operation the sling should be returned to proper storage. When not in use, slings should be stored in clean, dry and well ventilated conditions, at ambient temperature and on a rack, away from any heat sources, contact with chemicals, fumes, corrodible surfaces, direct sunlight or other sources of ultra-violet radiation.

Prior to placing in storage, slings should be inspected for any damage which may have occurred during use. Slings should never be returned damaged to storage.

Where lifting slings have come into contact with acids and/or alkalis, dilution with water or neutralization with suitable media is recommended prior to storage.

Depending on the material of the lifting sling and on the chemicals, it may be necessary in some cases to request from CERTEX additional recommendations on the cleaning procedure to be followed after the sling has been used in the presence of chemicals.

Slings which have become wet in use, or as the result of cleaning, should be hung up and allowed to dry naturally.
