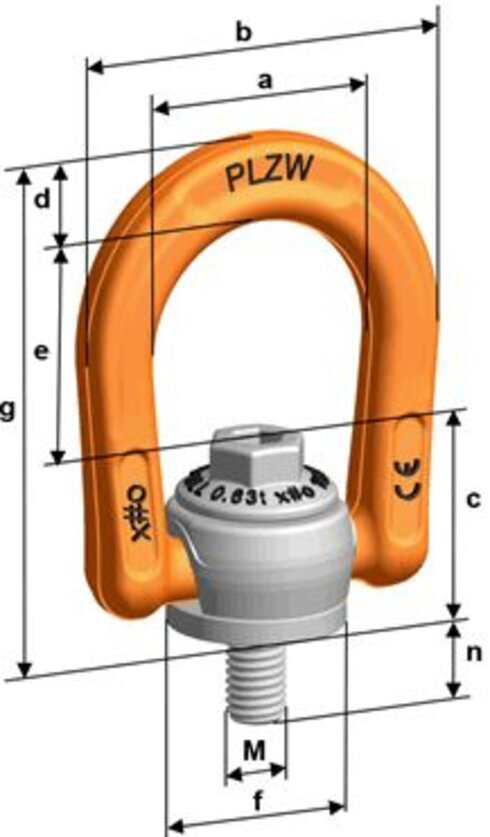

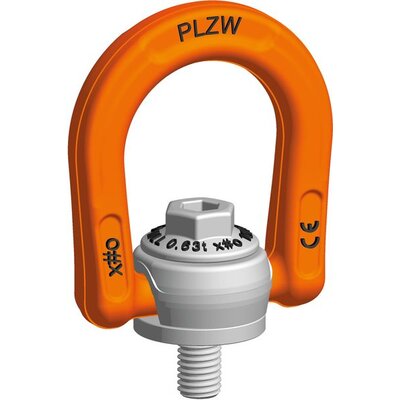

Lifting Point PLZW Zeta can be assembled and disassembled without tools (Up to thread size M24). The lifting point allows full 360° rotation, comes with five-fold security against breakage and can be loaded in all directions.
The PLZW Zeta protects the surface of the load from damage by integrating a sleeve. The replaceable bolt is 100% crack tested and has a chrome-VI-free corrosion protection as well as a marking with load capacity, thread size and tightening torque.
PLZW, is easily dismountable without the use of tools and is designed for quick and effortless disassembly into its individual parts. This special feature enables the direct assembly of various fittings (such as round slings, webbing slings, wire rope eyes, master links, and eye-type hooks) without having to use an additional shackle or connection link. It is distinguished by a golden-colored sleeve.
- Material: Alloy steel
- Marking: According to standard, CE-marked, WLL, thread size and an individual serial number.
- Temperature range: -20 °C to +200 °C
-
Standard:
EN 1677-1
except grade/WLL
- Safety factor: 5:1
