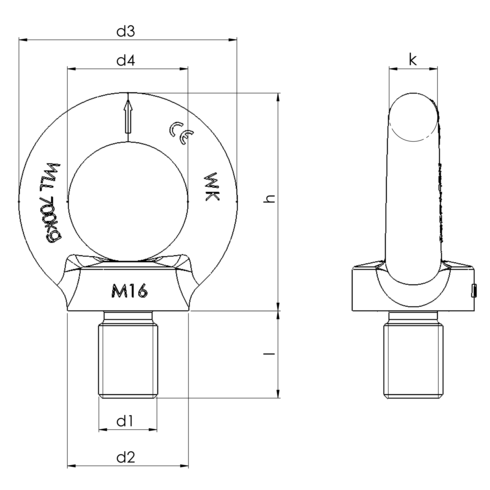

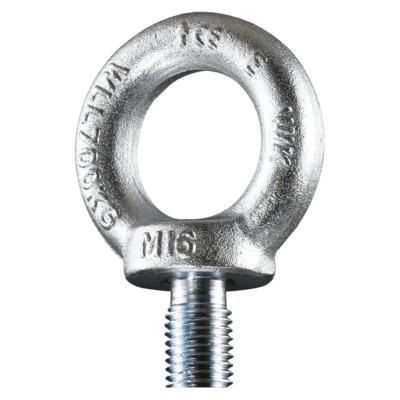

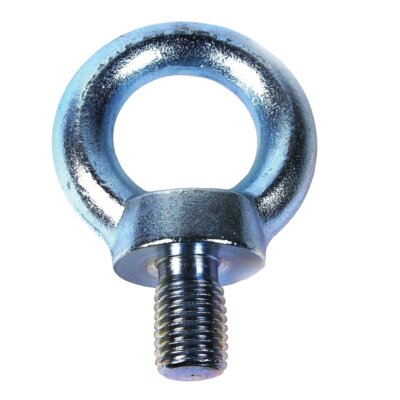

Lifting Eye Bolt DIN 580

Show more

Product number:
  • Material: Steel C15E.
  • Marking: According to standard, CE-marked, WLL, manufacturer C15, thread.
  • Finish: Electro galvanized.
  • Standard: DIN 580
  • Note: The lifting eyes shall be screwed tight against the surface. When two lifting eyes are used their mutual position shall result in the two eyes at the same level. Larger angle between the slings than 90° are not tolerated. Lifting eyes can not be assembled against a surface that differs essentially from a surface perpendicular to the direction of the lift.
  • Safety factor: 6:1

After click on the “Show table” button, you will see the table with all technical details about the product.

Thread drawing load capacities table 1 drawing load capacities table 5
  WLL (ton)
M8 0.14 0.095
M10 0.23 0.17
M12 0.34 0.24
M16 0.7 0.5
M20 1.2 0.83
M24 1.8 1.27
M30 3.2 2.6
M36 4.6 3.7
M42 6.3 5
M48 8.6 6.1
