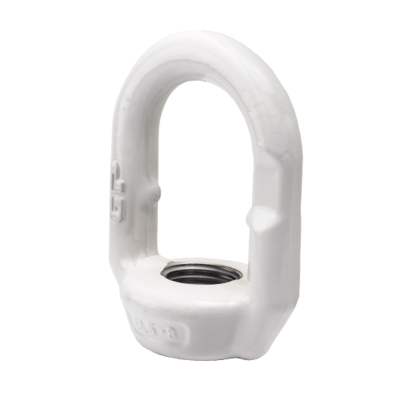

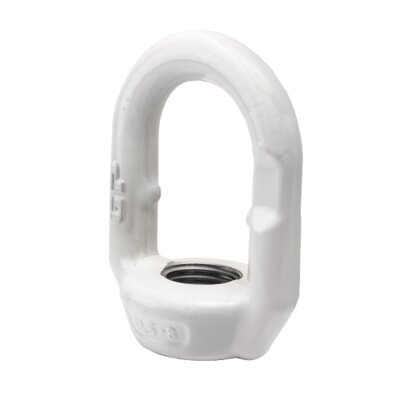

Eye Nut EL, Green Pin®

Green Pin

Certification: at no extra charge this product can be supplied with a works certificate,
a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: Painted red or white
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

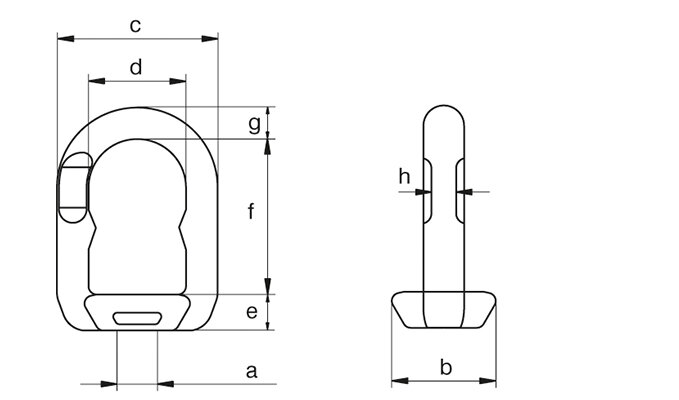

Part Code Diameter
mm		 WLL
ton		 Diameter Thread a
mm		 b
mm		 c
mm		 d
mm		 e
mm		 f
mm		 g
mm		 h
mm		 Weight
kg		 CAD
11.40EL6R 11 0,2 M6 x 1.00 31 51 30 14 44 6 6 0,15 -
11.40EL8R 11 0,4 M8 x 1.25 31 51 30 14 44 11 6 0,15 -
11.40EL10R 11 0,7 M10 x 1.50 31 51 30 14 44 11 6 0,15 -
11.40EL12R 12 1 M12 x 1.75 39 56 32 15 48 12 6 0,23 -
11.40EL14R 12 1,2 M14 x 2.00 39 56 32 15 48 12 6 0,23 -
11.40EL16R 14 1,5 M16 x 2.00 44 65 37 16 60 14 8 0,4 -
11.40EL18R 14 2 M18 x 2.50 44 65 37 16 60 14 8 0,4 -
11.40EL20R 14 2,5 M20 x 2.50 44 65 37 16 60 14 8 0,4 -
11.40EL22R 16 3 M22 x 2.50 52 80 48 21 75 16 11 0,63 -
11.40EL24R 16 4 M24 x 3.00 52 80 48 21 75 16 11 0,63 -
11.40EL27R 16 5 M27 x 3.00 52 80 48 21 75 16 11 0,63 -
11.40EL30R 21 6 M30 x 3.50 66 96 58 25 88 21 14 1,11 -
11.40EL33R 21 7 M33 x 3.50 66 96 58 25 88 21 14 1,11 -
11.40EL36R 25 8 M36 x 4.00 84 121 73 39 100 25 17 2,22 -
11.40EL39R 25 9 M39 x 4.00 84 121 73 39 100 25 17 2,22 -
11.40EL42R 25 10 M42 x 4.50 84 121 73 39 100 25 17 2,22 -
11.40EL45R 25 15 M45 x 4.50 90 132 82 42 121 25 22 2,73 -
11.40EL48R 25 18 M48 x 5.00 90 132 82 42 121 25 22 2,73 -

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
