• Not for lifting
  • Galvanized

A galvanized spiral rope with a transparent Polyamide/Nylon-coating. It can be used for various applications such as signaling devices, etc but not for lifting.

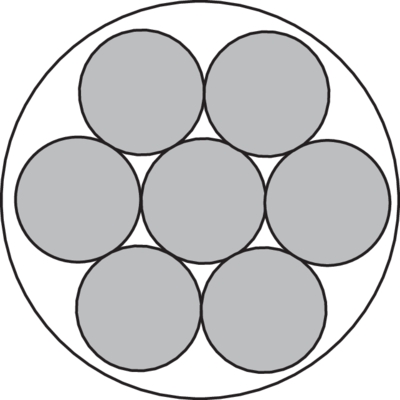

  • Rope construction: Spiral rope 1x7
  • Marking: According to standard
  • Finish: Polyamide/Nylon-coated
  • Standard: EN 12385-10
    except from coating
  • Fill factor: 0,78
  • General use Wire for general use
Wire rope Nylon/Polyamide-coated 1x7
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Inner diameter
mm
Tensile strength
N/mm²
Steel Area
mm²
Min. breaking force
kN
Colour Weight
kg/100m
01.G70007011E 1 0,6 1 770 0,21 0,34 transparent 0,18
01.G70007011G 1 0,6 1 960 0,21 0,37 transparent 0,18
Other dimensions and colour on request.
