Home / Products / STEEL WIRE ROPES / STEEL WIRE ROPE PRODUCTS / General ropes / Steel Wire Rope 8x36WS-IWRC

Steel Wire Rope 8x36WS-IWRC

  • Ordinary right hand lay
  • Ordinary left hand lay
  • Bright
  • Galvanized
  • Not to be used with swivel

ISO 4309 Rope Category No: RCN.11

  • Rope construction: 8x36WS-IWRC.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.6
  • Winch rope Wire for winches
  • Overhead cranes For the use with overhead crane
  • Tower crane Wire for tower crane

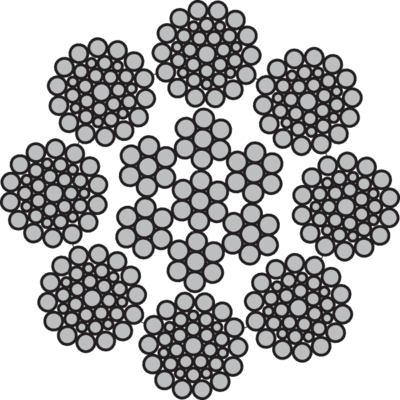

8x36-IWRC_225mm
8x36 WS - IWRC-337tr
8x36-IWRC_225mm
8x36 WS - IWRC-337tr
Select a row from the table below, then click the add to quote button
Part Code Rope diameter Steel Area
mm²		 Min. breaking force
kN
1770 N/mm²		 Min. breaking force
kN
1960 N/mm²		 Weight
01.B10337130E 13 79,1 106 118 70,5
01.B10337140E 14 91,7 124 137 81,7
01.B10337160E 16 120 161 179 107
01.B10337180E 18 152 204 226 135
01.B10337200E 20 187 252 279 167
01.B10337220E 22 227 305 338 202
01.B10337240E 24 270 363 402 240
Other dimensions on request.
