• Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Not to be used with swivel

ISO 4309 Rope category No: All Diameters RCN.02

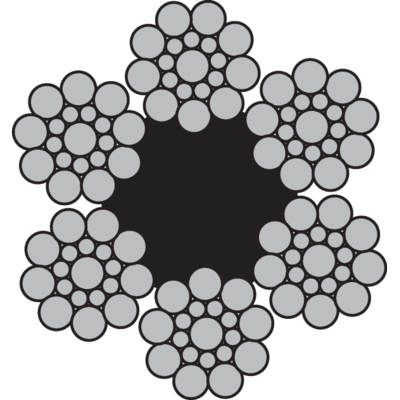

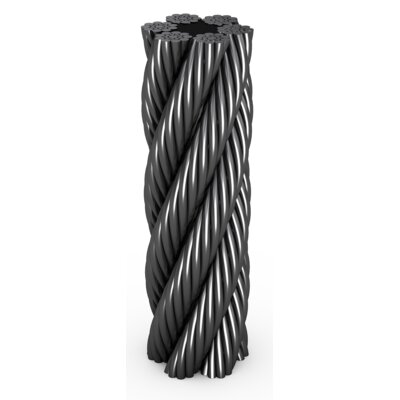

  • Rope construction: 6x19S-FC
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.49
  • Slings Sling wire rope
  • Overhead cranes For the use with overhead crane
  • Tower crane Wire for tower crane
6x19-FC Seal[new]_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1770 N/mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
01.G10114100E-S 10 38,4 58,4 64,7 36
01.G10114110E-S 11 46,5 70,7 78,3 43
01.G10114120E-S 12 55,3 84,1 93,1 52
01.G10114130E-S 13 64,9 98,7 109 61
01.G10114140E-S 14 75,3 114 127 70
01.G10114150E-S 15 86,4 131 146 81
01.G10114160E-S 16 98,3 150 92
