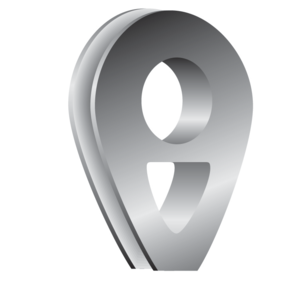

Thimbles are use as protection of steel wire rope loops.

Design: Forged.

  • Marking: According to standard
  • Finish: Galvanized
  • Standard: EN 13411-1
    DIN 3090 replaced by EN 13411-1

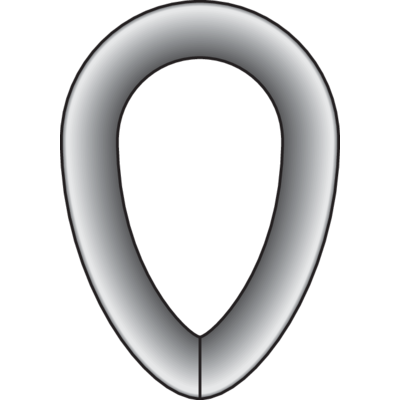

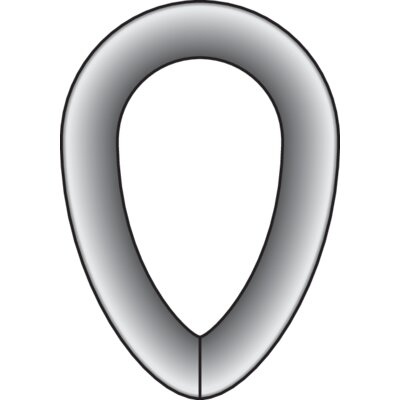

    4921_e_225mm

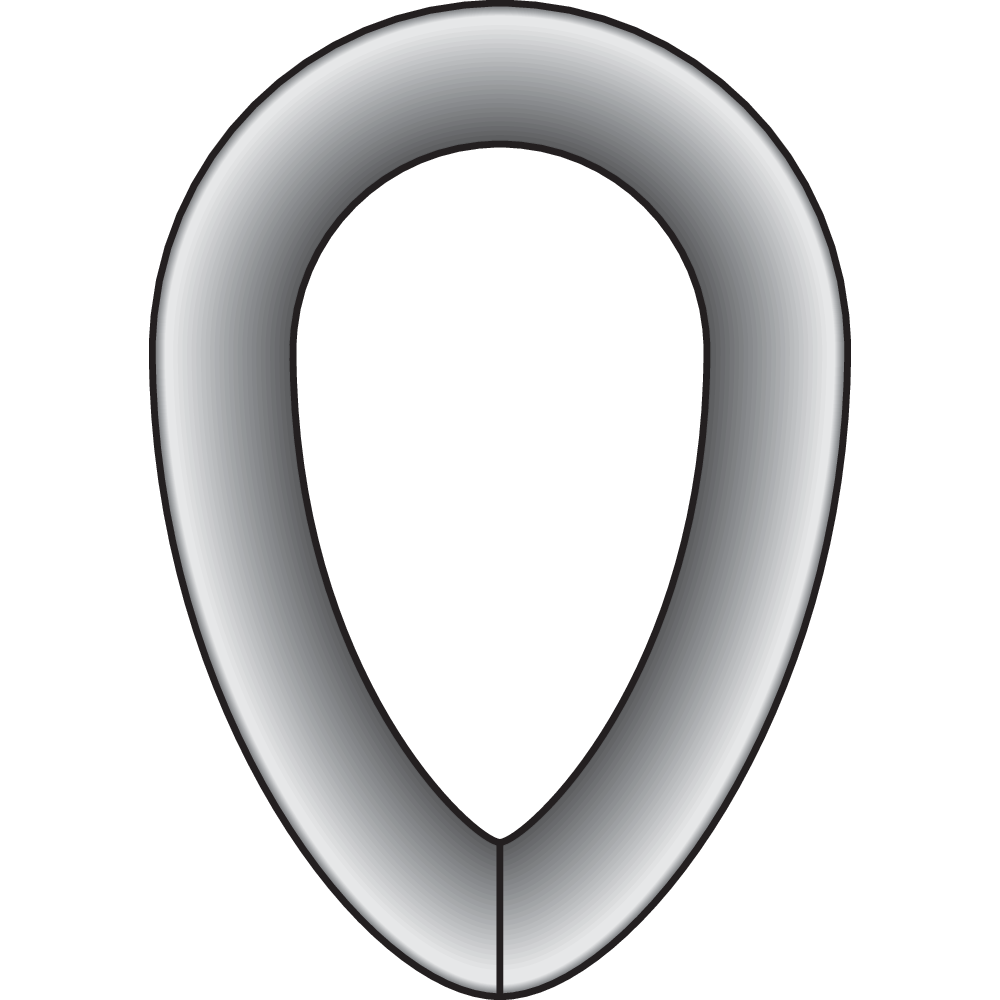

    4921m_e _225mm
    Select a row from the table below, then click the add to quote button

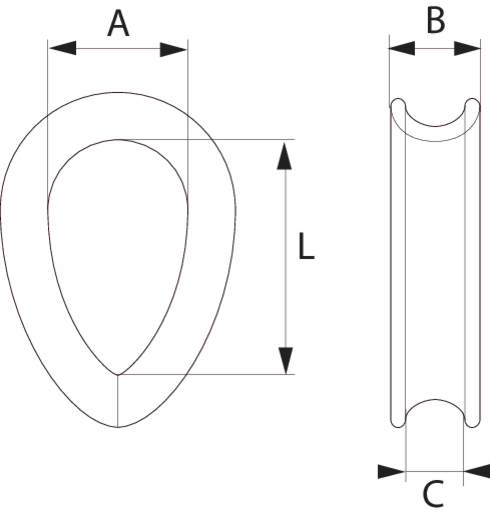

    Part Code Rope diameter
    mm
    A
    mm
    L
    mm
    B
    mm
    C
    mm
    Weight
    kg/100m
    10.25309006 6 15 30 10 7 3
    10.25309008 8 20 40 13 9 7,1
    10.25309010 10 25 50 15 11 17
    10.25309012 12 30 60 19 13 24
    10.25309014 14 35 70 22 16 36
    10.25309016 16 40 80 25 18 50
    10.25309018 18 45 90 27 20 62
    10.25309020 20 50 100 30 22 90
    10.25309022 22 55 110 33 24 100
    10.25309024 24 60 120 35 26 130
    10.25309026 26 65 130 45 29 220
    10.25309028 28 70 140 48 31 240
    10.25309032 32 80 160 50 35 270
    10.25309036 36 90 180 55 40 430
    10.25309040 40 100 200 60 44 570
    10.25309044 44 110 220 68 48 850
    10.25309048 48 120 240 72 53 1 120
    10.25309052 52 130 260 80 57 1 530
    10.25309056 56 140 280 83 62 2 148
    10.25309060 60 150 300 90 66 2 300
    10.25309068 68 170 340 100 75 3 700
