A combination of wire rope clamp and thimble, approved for application in elevators and hoists. Two part thimble and recessed bolts, for easy mounting.

  • Material: Cast steel GS-60. Bolts and nuts in grade 8.8.
  • Finish: Hot dip galvanized.
  • Note: Before tightening the nuts, be sure that the steel wire rope is tight in the thimble groove.

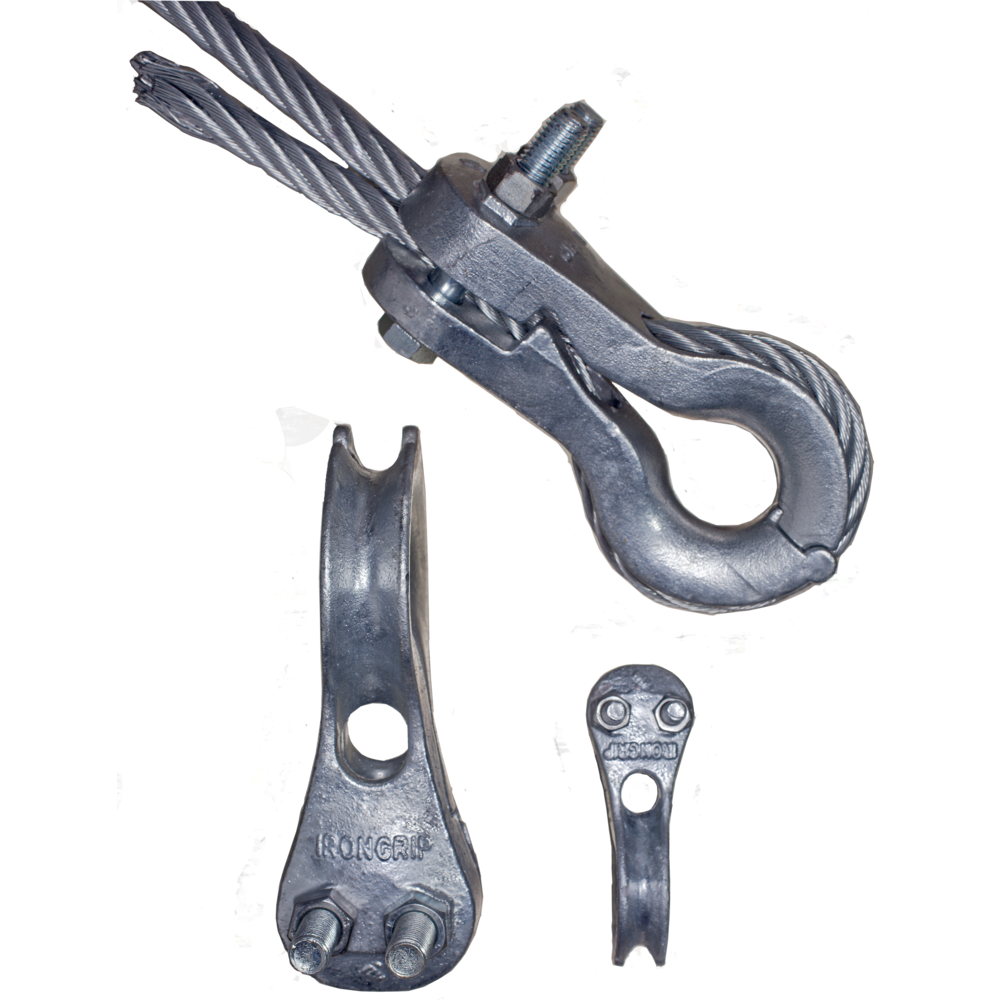

    Clamp thimble mounted on wire rope

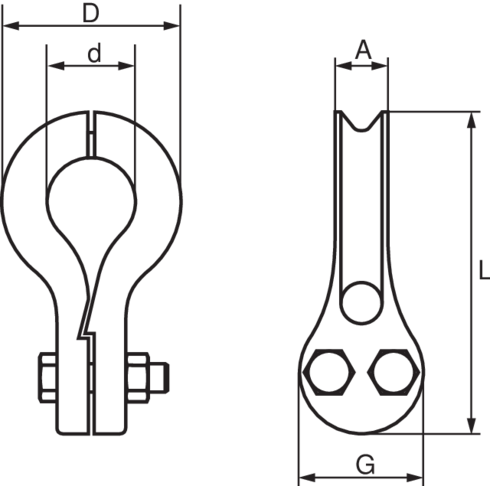

    Clamp thimble measurements
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Extra clamp for lifting 1960 N/mm² Extra clamp for lifting 1770 N/mm² A
    mm
    D
    mm
    d
    mm
    G
    mm
    L
    mm
    10.29KK0600 5-6 12 36 16 26 74
    10.29KK0900 7-9.5 18 54 24 40 104
    10.29KK1200 10-12.5 1 25 74 30 58 144
    10.29KK1600 13-16.5 1 28 95 40 72 190
    10.29KKM20* 17-20 1 1 37 166 68 80 244
    *This size is only available in type KK-M
