General: Adapted for general purpose. Diameter relation app. 9 (lin Ø x 9 = ØE).
Design: Turned out of steel for stable state and low weight. Bronze bushed. To be lubricated on the shaft.

  • Material: High strength construction steel, bush of red metal SS 5204-15.
  • Finish: Yellow zincified.
    Designed for lifting solutions where crane wire rope is specified and for other gentle lifts

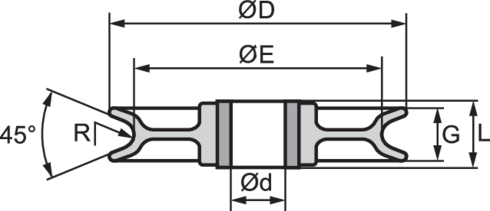

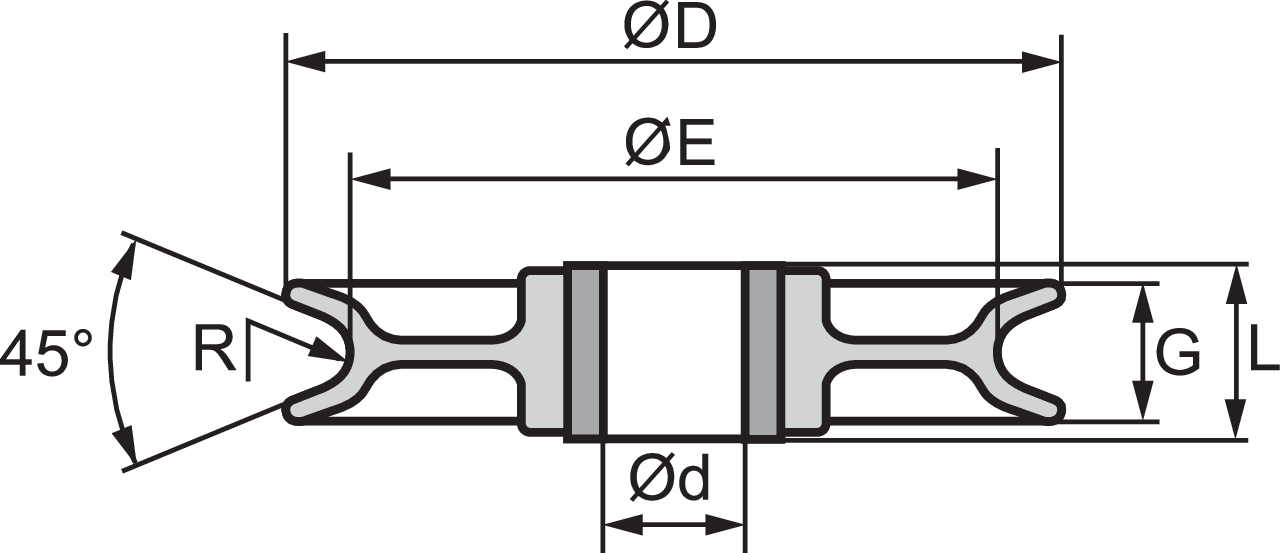

    Wire rope sheave 8000 measurements
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    d H8 D
    mm
    E
    mm
    G
    mm
    L
    mm
    R
    mm
    Weight
    kg
    10.354015053 8012 12 20 125 103 23 26 6,5 1,3
    10.354015490 8015 15 28 150 125 28 33 8 2,1
    10.354016021 8018 18 35 200 165 37 47 9,5 4,2
    10.354015020 8023 23 45 250 210 43 50 12 8,3
    Other dimensions and designs on request.
