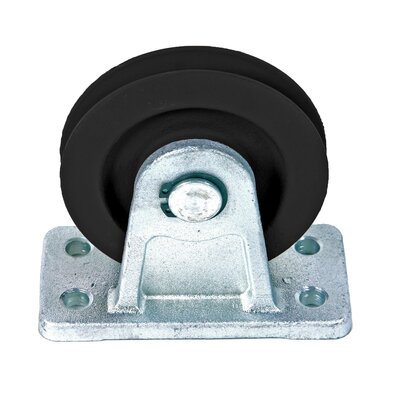

Design: Permanently lubricated sleeve bearings, rotary cut steel sheaves.


  • Finish: Zinc electroplating.
  • Note: We also supply models with multiple spindles, stainless steels models and loose pulleys.

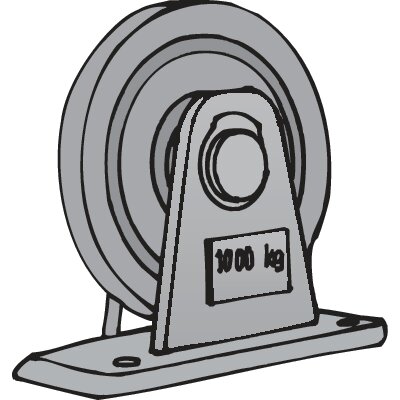

sheave_500_5000
Select a row from the table below, then click the add to quote button
Part Code Code Rope diameter WLL
ton
Sheave Ø
mm
Shaft Ø
mm
Weight
kg
10.350150105 TP1-05 8 0,5 100 20 1,5
10.350150210 TP1-10 10 1 125 25 2,4
10.350150320 TP1-20 12 2 150 30 4,5
10.350150430 TP1-30 16 3 200 35 8,2
10.350150550 TP1-50 20 5 275 40 18
