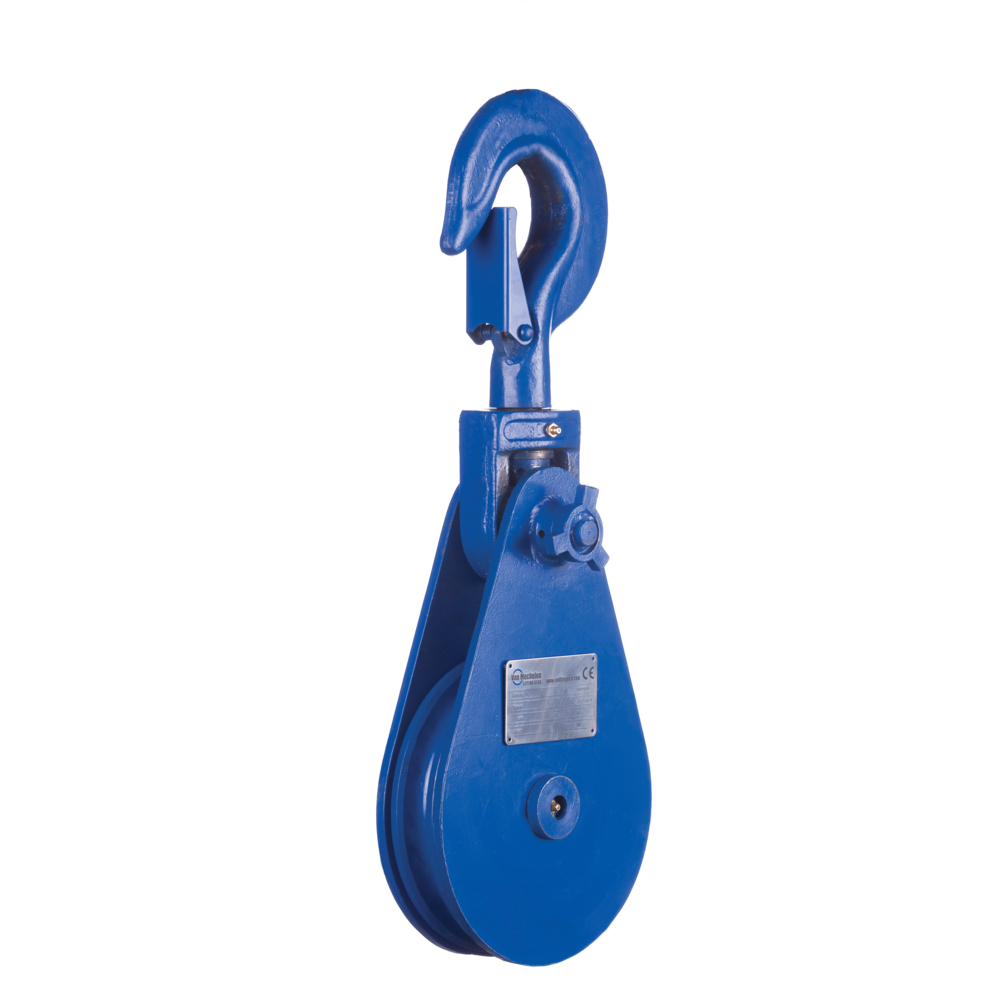

Ropeblock

General: Intended for general lifting purposes. Can also be used for pulling. WLL in table applies for load on head fitting/hook.
Design: Snatch block type with covering side plates. Provided with swiveling hook with latch. Bronze bushed sheave in 2-4 tons blocks and roller bearings in lager sizes. Grease fitting in the shaft and cross head.

  • Material: Steel.
  • Marking: Type, WLL and wire rope diameter.
  • Finish: Blue painted.

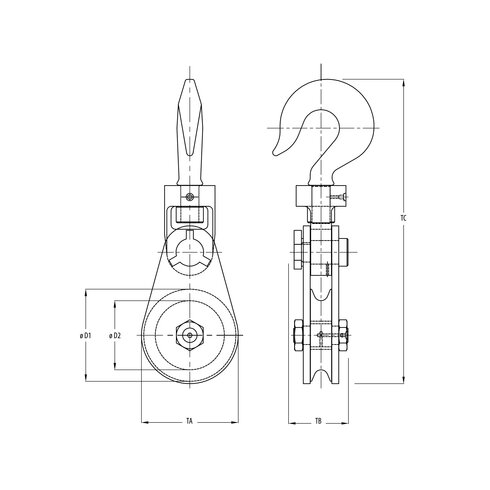

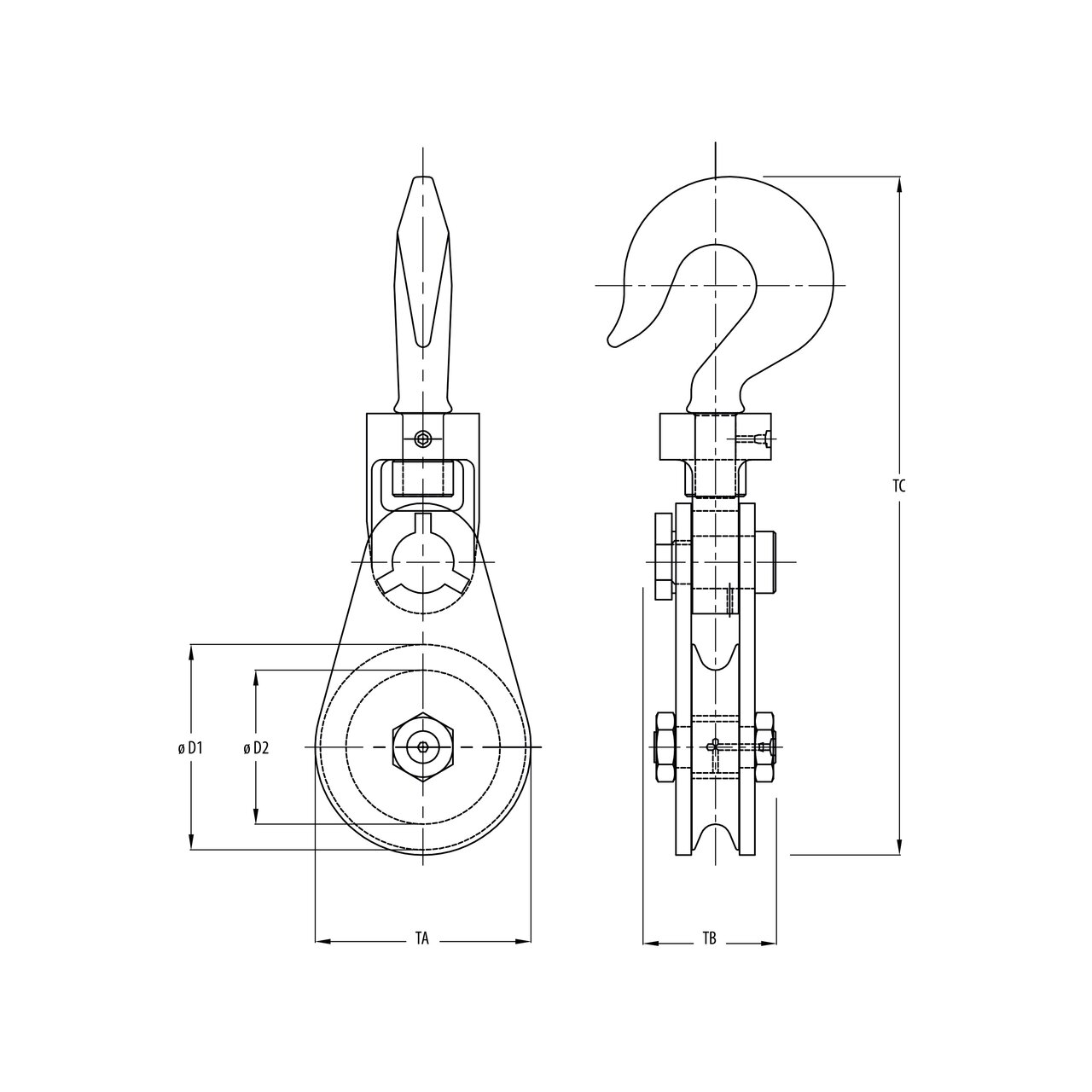

    Snatchblock_hook
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Diameter
    mm
    TA
    mm
    TB
    mm
    TC
    mm
    Ø D1
    mm
    Ø D2
    mm
    Weight
    kg
    16.15121030214 2 7-9 82 70 290 75 58 4
    16.15121040414 4 10-12 120 70 358 115 90 6
    16.15121060414 4 16-19 160 70 432 150 120 14
    16.15121080814 8 19-22 210 93 549 200 165 16
    16.15121101014 10 24-26 260 115 695 250 205 38
    16.15121121214 12 24-26 310 133 797 300 250 56
    16.15121081514 15 22-24 210 102 672 200 165 24
    16.15121121514 15 24-26 310 133 797 300 250 65
    16.15121142214 22 28-32 365 140 960 355 305 90
    16.15121123014 30 28-30 310 193 993 300 250 125
    16.15121163014 30 32-35 415 155 1 121 405 350 135
    16.15121143514 35 32-35 365 193 1 028 350 280 130
    16.15121245014 50 46-50 625 275 1 495 600 500 418
