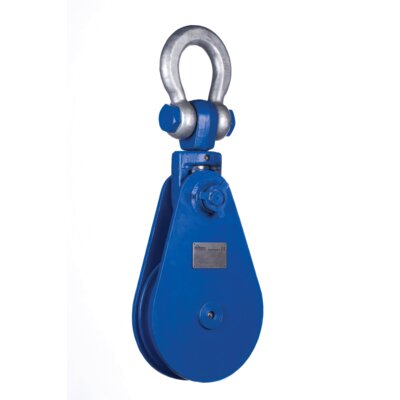

Ropeblock

General: Intended for general lifting purposes. Can also be used for pulling. WLL in table applies for load on head fitting/shackle.

Features:

  • Snatch block type with covering side plates.
  • Provided with swiveling bow shackle.
  • Grease fitting in the shaft and cross head.
  • Bronze bushed sheave in 2-4 tons blocks and roller bearings in larger sizes.





  • Material: Steel.
  • Marking: Type, WLL and wire rope diameter.
  • Finish: Blue painted.
    snatchblock_schackle
    Select a row from the table below, then click the add to quote button

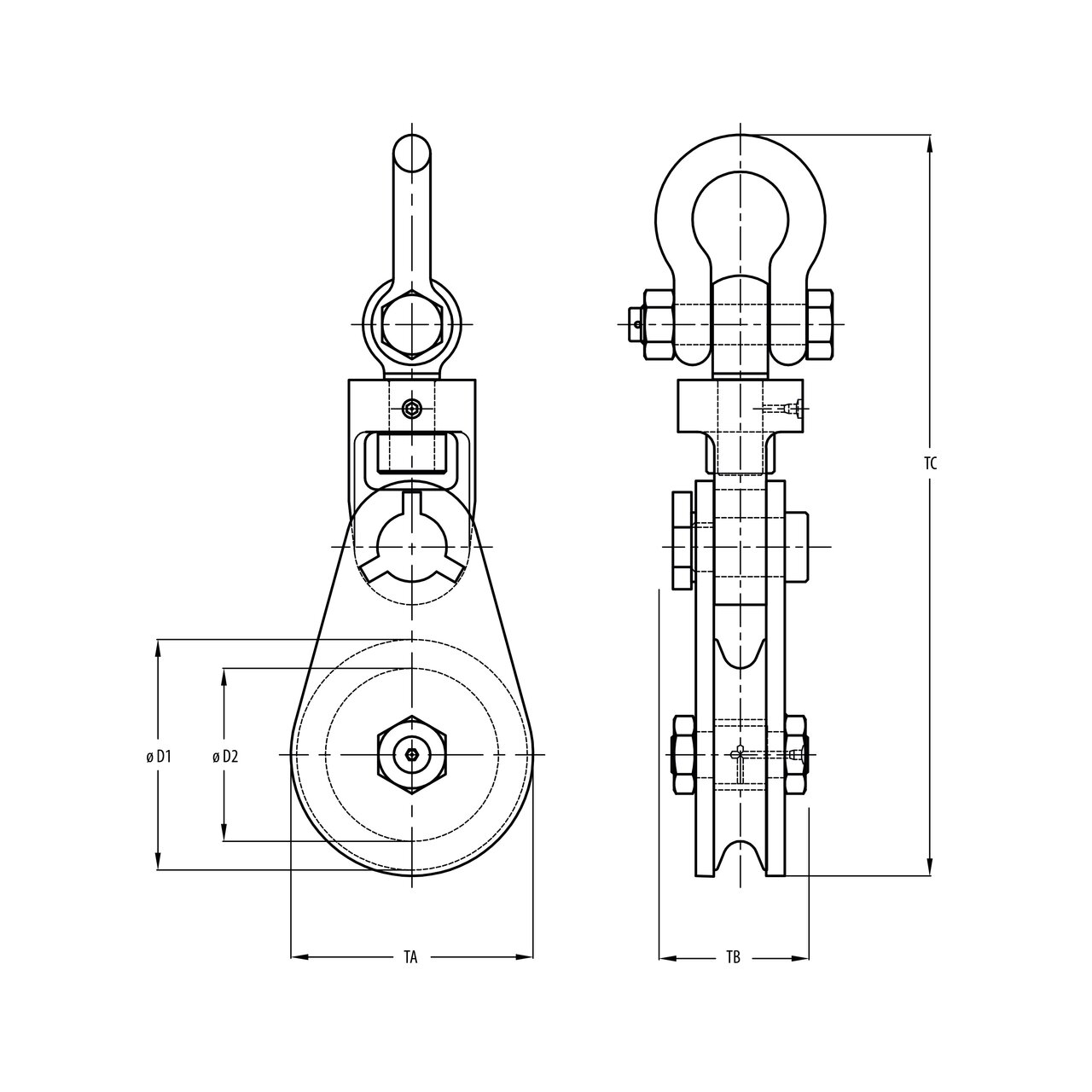

    Part Code WLL
    ton
    Diameter
    mm
    TA
    mm
    TB
    mm
    TC
    mm
    Ø D1
    mm
    Ø D2
    mm
    Weight
    kg
    16.15121030215 2 7-9 82 70 290 75 58 4
    16.15121040415 4 10-12 120 70 358 115 90 6
    16.15121060415 4 16-19 160 70 432 150 120 14
    16.15121080815 8 19-22 210 93 550 200 165 16
    16.15121101015 10 24-26 260 115 681 250 205 38
    16.15121121215 12 24-26 310 133 767 300 250 56
    16.15121181515 15 22-24 210 102 663 200 165 24
    16.15121121515 15 24-26 310 133 788 300 250 65
    16.15121142215 22 28-32 365 140 962 355 305 90
    16.15121123015 30 28-30 310 193 1 023 300 245 125
    16.15121163015 30 32-35 415 155 1 121 405 350 135
    16.15121143515 35 32-35 365 193 1 058 350 280 130
    16.15121245015 50 46-50 625 275 1 525 600 500 418
