• Safety factor : MBL equals 5 x WLL

• Certification : at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity
  • Material: alloy steel, grade 8, quenched and tempered
  • Finish: painted red
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

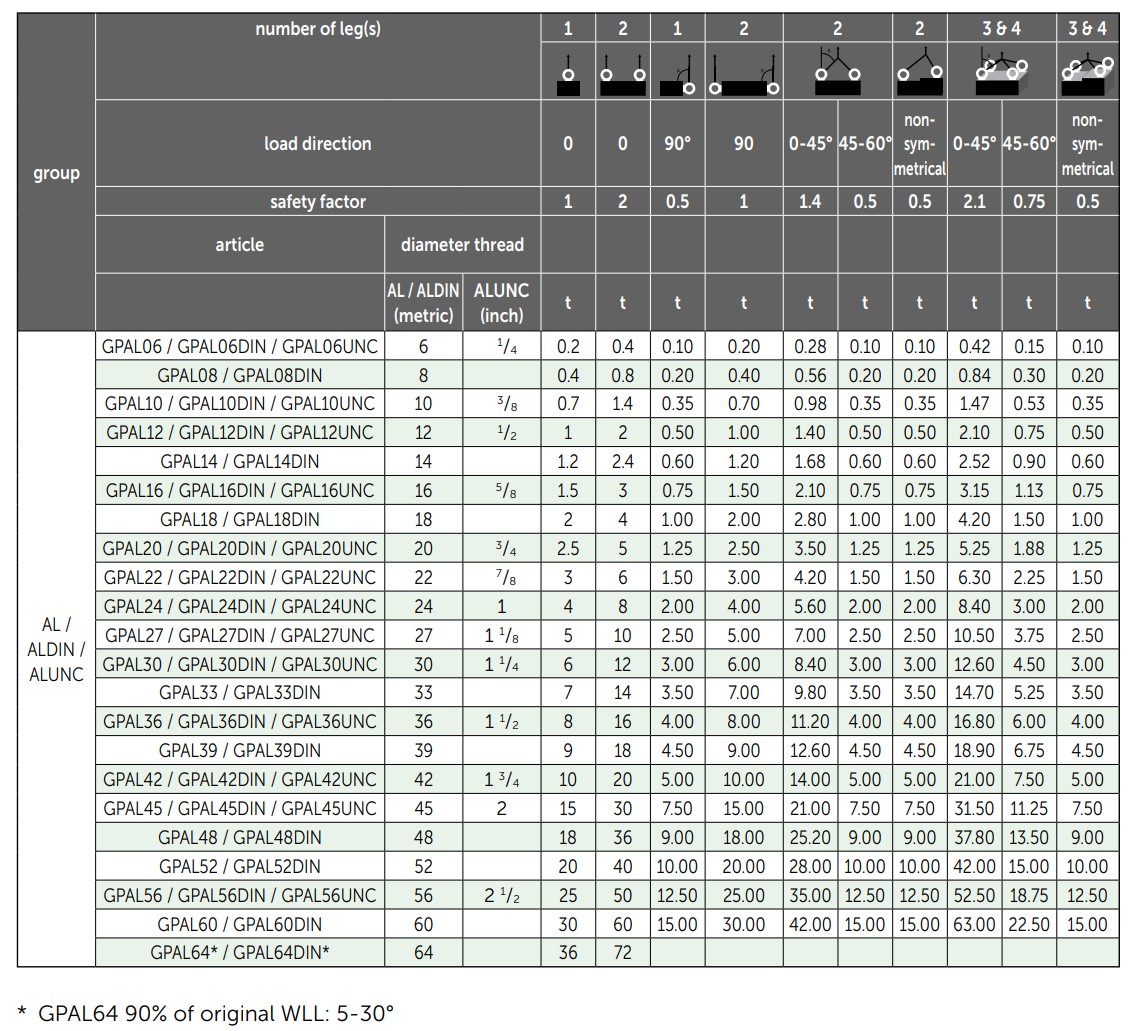

Part Code Diameter
mm
WLL
ton

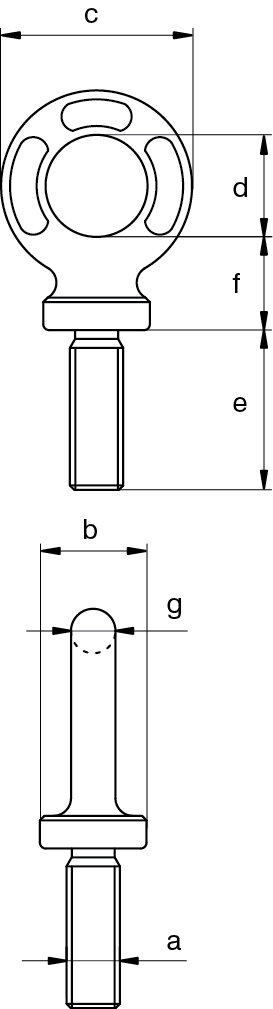

diameter base b (mm) diameter eye outside c (mm) diameter eye inside d (mm) thickness base f mm Thread a length e Diameter g Weight
kg
CAD
11.40AL06R 7 0.2 20 34 20 17 M 6 x 1.00 20 7 0.05
11.40AL08R 7 0.4 20 34 20 17 M 8 x 1.25 24 7 0.05
11.40AL10R 8 0.7 20 38 22 19 M10 x 1.50 30 8 0.08
11.40AL12R 10 1 25 47 26 23 M12 x 1.75 36 10 0.14
11.40AL14R 14 1.2 30 57 29 28 M14 x 2.00 40 14 0.25
11.40AL16R 14 1.5 36 65 35 30 M16 x 2.00 55 14 0.36
11.40AL18R 14 2 36 65 35 30 M18 x 2.50 54 14 0.38
11.40AL20R 16 2.5 40 73 39 34 M20 x 2.50 59 16 0.55
11.40AL22R 19 3 42 82 44 38 M22 x 2.50 64 19 0.74
11.40AL24R 20 4 55 95 54 40 M24 x 3.00 84 20 1.12
11.40AL27R 20 5 55 95 54 40 M27 x 3.00 84 20 1.18
11.40AL30R 24 6 60 108 59 49 M30 x 3.50 100 24 1.84
11.40AL33R 24 7 60 108 59 49 M33 x 3.50 100 24 2.01
11.40AL36R 25 8 65 118 67 45 M36 x 4.00 118 25 2.44
11.40AL39R 25 9 65 118 67 45 M39 x 4.00 118 25 2.62
11.40AL42R 31 10 70 139 79 56 M42 x 4.50 135 31 3.97
11.40AL45R 31 15 70 139 79 56 M45 x 4.50 135 31 4.16
11.40AL48R 43 18 95 181 97 68 M48 x 5.00 150 43 8.22
11.40AL52R 43 20 95 181 97 68 M52 x 5.00 150 43 8.55
11.40AL56R 43 25 95 181 97 68 M56 x 5.50 150 43 8.85
11.40AL60R 43 30 95 181 97 68 M60 x 5.50 150 43 9.16
11.40AL64R 43 36 95 181 97 68 M64 x 6.00 150 43 9.55

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
