Crosby

Features:

  • Individually Proof Tested at 2-1/2 times the 4:1 Working Load Limit with certification.
  • Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
  • Easy to operate with enlarged thumb access.
  • Positive Lock Latch is Self-Locking when hook is loaded.
  • Rated for both Wire Rope and use with Grade 80/100 Chain.



  • Material: Forged Alloy Steel - Quenched and Tempered.
  • Finish: Painted
  • Safety factor: 4:1
  • Grade: 10
Swivel Hook Platinum S-1326

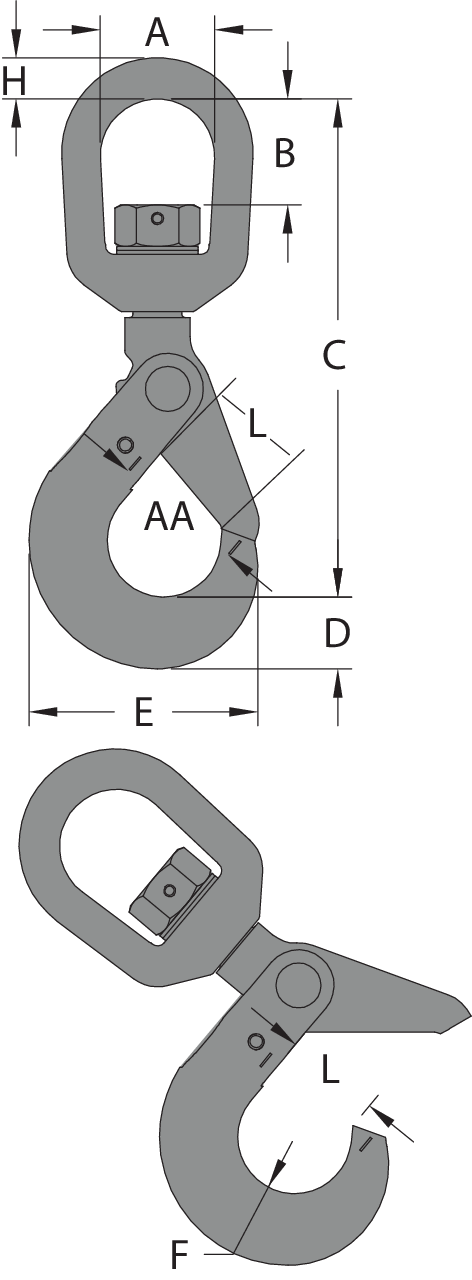

Swivel Hook Platinum S-1326_drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
J
mm
L
mm
AA**
mm
Weight
kg
CAD
11.161004304 1.45 6 38,1 33,5 189 20,1 66 17 12,7 16 28,7 38,1 0.57
11.161004313 2.59 7-8 44,5 40,4 235 27,9 88,9 22.1 16 20,6 35,1 51 1.18
11.161004322 3.99 10 50,8 43,9 274 29,7 112 27.9 19,1 23,9 44,5 63,5 2.13
11.161004331 6.8 13 63,5 60,5 351 42,4 139 32 25,4 29,5 53,6 76,2 3.92
11.161004340 10.3 16 69,9 68.6 410 51,8 167 38.1 28,7 39,1 63,2 89 7.71
11.161004349 16 18-20 71,9 64 442 56,4 197 51.1 27,9 51,6 89,4 127 10.9
11.161004358 20 22 87,4 81 417 62,2 222 57.4 33 55,9 97,3 152 13.2
