Safety hook to be welded on the excavator bucket.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts are traceable to Test Certification.
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
WLL forged onto each product for quick and easy identification.
Lugs designed to assist the welding process.
A protected spring keeps the load ring in a required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibrations."

  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked, Size, grade, manufacturer ID, traceability.
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Finish: Yellow painted.
  • Standard: EN 1677-1
  • Safety factor: 5:1
  • Grade: 10

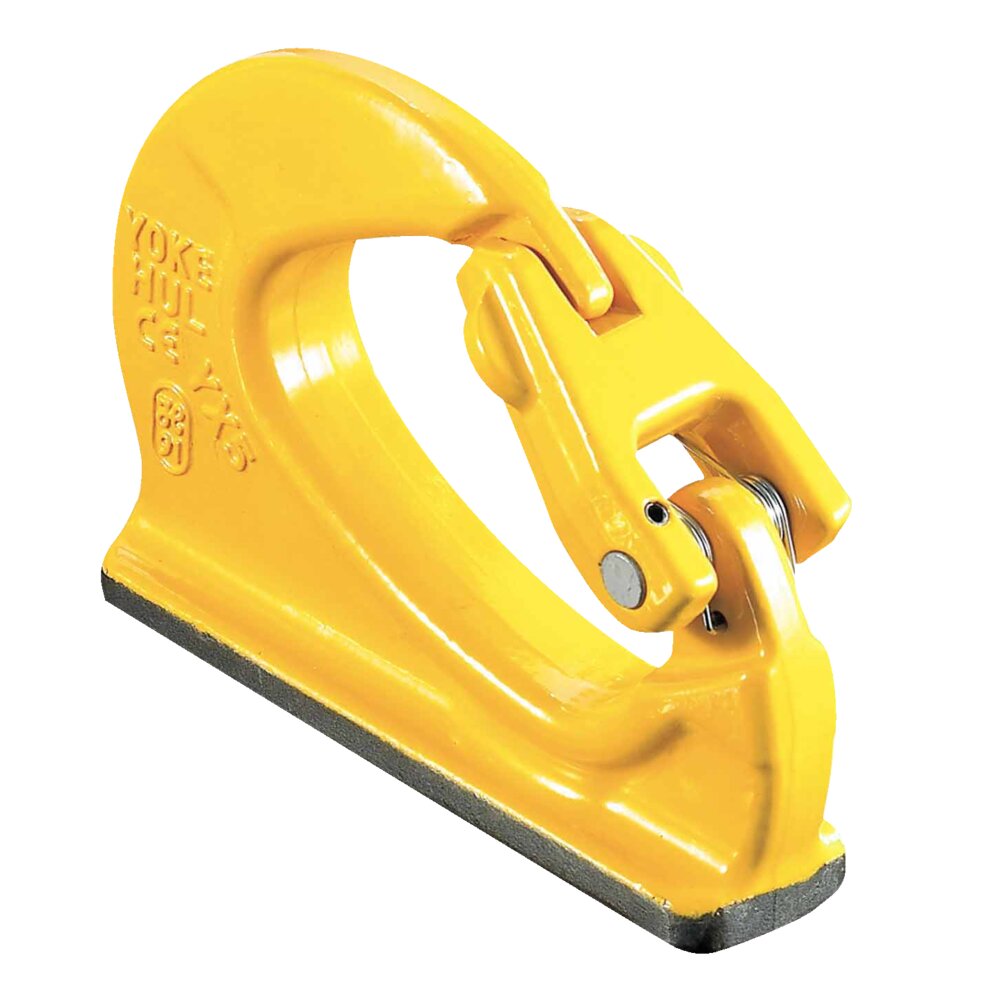

Yoke 8-081 Excavator Weld-on Hook perfect for mobile lifting equipment

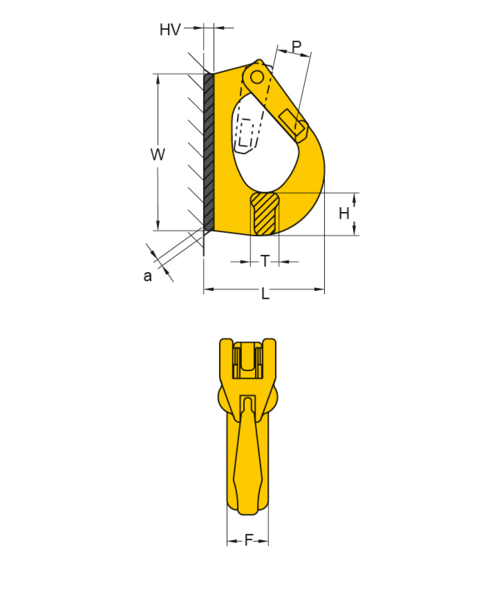

Yoke 8-081 Excavator Weld-on Hook measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Repair kits A
mm
F
mm
H
mm
L
mm
M
mm
P
mm
T
mm
W
mm
Weight
kg
11.288-081-01 1 8-P081-01 7 25 27 70 4 18 18 95 0,6
11.288-081-02 2 8-P081-02 8 30 30 85 5 25 20 115 1
11.288-081-03 3 8-P081-03 9 35 30 107 6 28 23 133 1,4
11.288-081-04 4 8-P081-04 10 42 38 114 7 28 30 142 2,2
11.288-081-05 5 8-P081-05 12 44 47 135 7 30 31 167 3
11.288-081-08 8 8-P081-08 12 50 52 137 8 32 39 176 3,7
11.288-081-10 10 8-P081-10 13 56 56 170 8 44 42 222 6,2
11.288-081-15 15 8-P081-15 14 61 67 184 10 54 45 242 7,9
Kind of attachment Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5 Lifting Chart 6 Lifting Chart 7 Lifting Chart 8
Number of legs 1 2 1 2 2 2 2 3-4 3-4 3-4
Load direction 90° 90° 0-45° 45-60° Unsymm. 0-45° 45-60° Unsymm.
8-081-01 1 2 1 2 1,4 1 1 2,1 1,5 1
8-081-02 2 4 2 4 2,8 2 2 4,2 3 2
8-081-03 3 6 3 6 4,2 3 3 6,3 4,5 3
8-081-04 4 8 4 8 5,6 4 4 8,4 6 4
8-081-05 5 10 5 10 7 5 5 10,5 7,5 5
8-081-08 8 16 8 16 11,2 8 8 16,8 12 8
8-081-10 10 20 10 20 14 10 10 21 15 10
8-081-15 15 30 15 30 21 15 15 31,5 22,5 15
