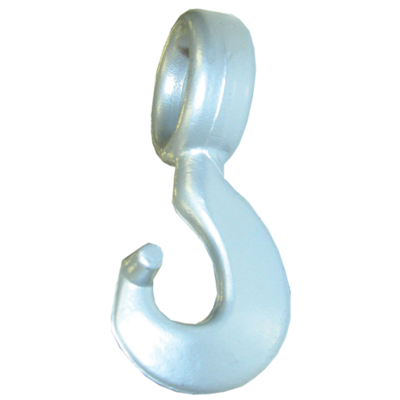

Crosby Chain Choker Hook A-1355

Home / Products / CHAINS AND SLINGS / COMPONENTS / Hooks and Shorteners / Crosby Chain Choker Hook A-1355

Material: Forged alloy steel grade 10.
Marking: Logo, Product Identification Code (PIC), size
Note: Application in combination with Crosby chain coupler link S-1325

Safety factor: 4:1
Grade: 10

Select a row from the table below, then click the add to quote button

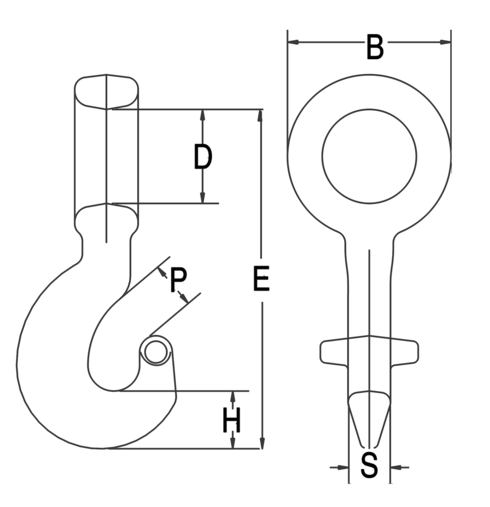

Part Code	WLL ton	For chain Grade 10 Ø mm	B mm	D mm	E mm	H mm	P mm	S mm	Weight kg	CAD
11.251015204	2,6	7/8	52,1	30	123	20,1	17,5	16,5	0,34	-
11.251015213	4	10	67,6	39,9	154	23,6	23,6	17,5	0,74	-
11.251015222	6,8	13	85,1	51,6	193	30	32	23,8	1,4	-
11.251015231	10,3	16	107	64	246	39,1	28,4	30	3,2	-

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address
