pewag

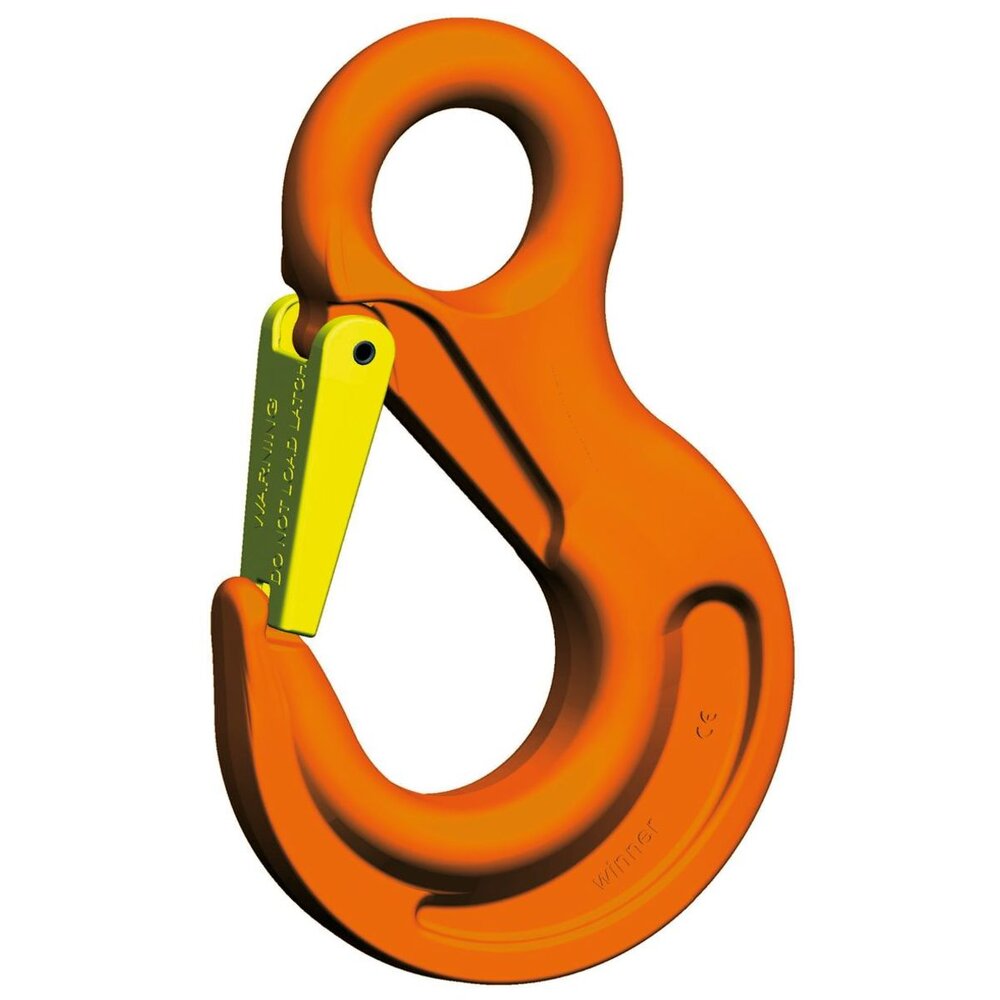

HSW Eye sling hooks are designed for the assembly of chain slings. All hooks with forged safety catch.
For general lifting applications.

  • Material: High duty grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-2
  • Safety factor: 4:1
  • Grade: 10

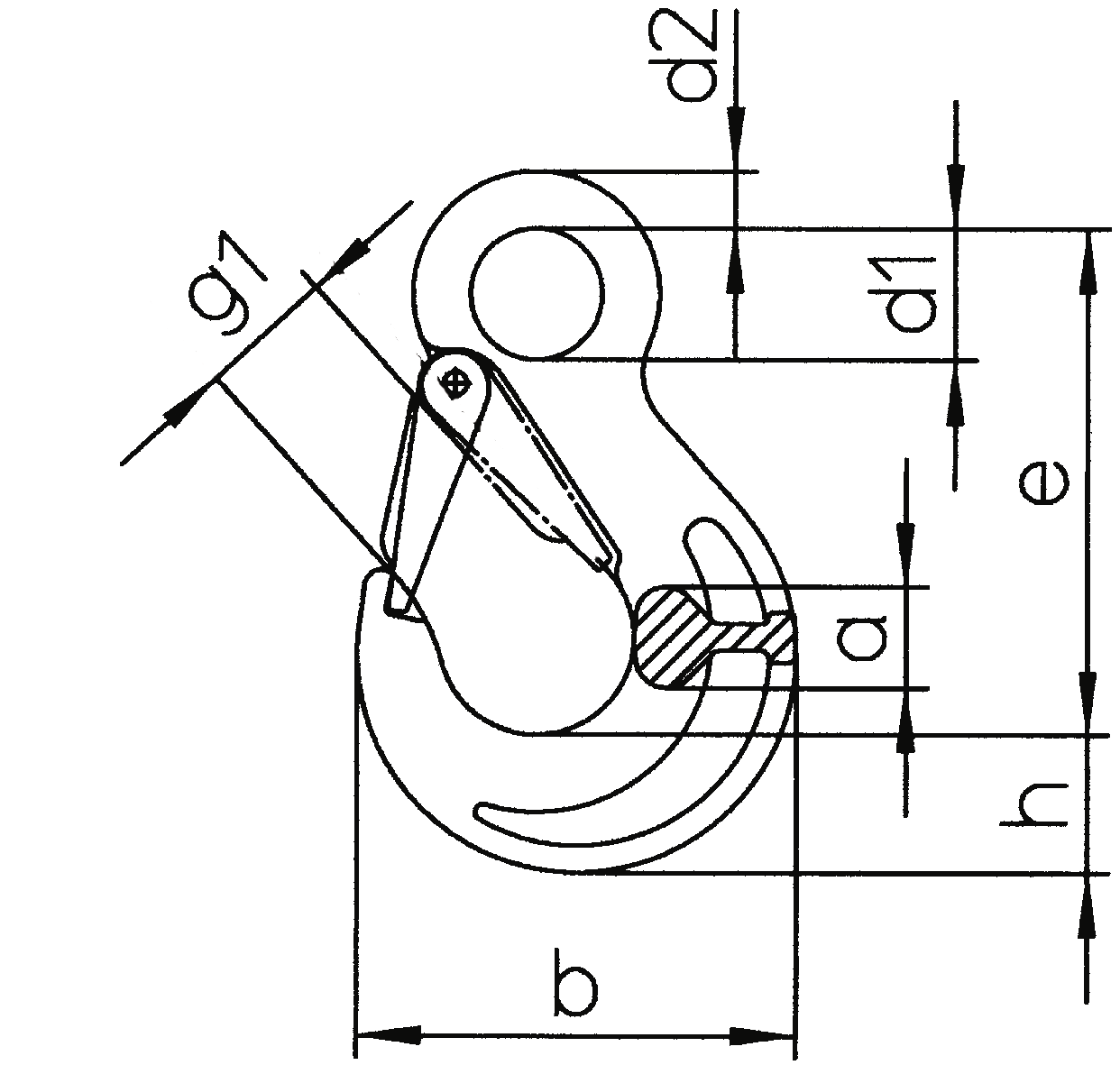

HSW streg
Select a row from the table below, then click the add to quote button

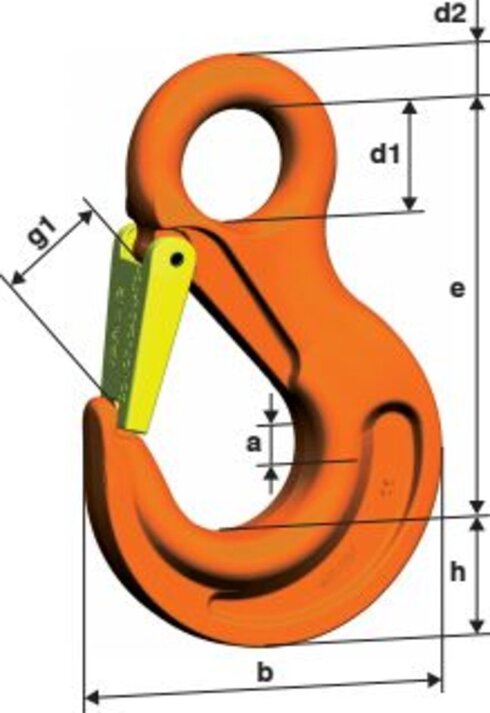

Part Code Code WLL
ton
LC
kN
a
mm
b
mm
d1
mm
d2
mm
e
mm
g1
mm
h
mm
Weight
11.1167237 HSW 5/6 1,4 28 17 68 20 10 85 19 21 0,3
11.1167239 HSW 7/8 2,5 50 19 88 25 11 106 26 27 0,5
11.1167241 HSW 10 4 80 26 109 34 16 131 31 33 1,1
11.1167243 HSW 13 6,7 134 33 134 43 19 164 39 44 2,2
11.1167245 HSW 16 10 200 40 155 50 25 183 45 50 3,5
11.1167247 HSW 19/20 16 320 48 178 55 27 205 53 55 5,8
11.1167187 HSW 22 19 380 50 196 60 29 225 62 62 8
11.1170516 HSW 26 26,5 530 70 235 70 37 259 73 75 13,4
11.1188728 HSW 32 40 800 82 291 66 45 299 87 97 27,5

LC kN has SF: 2:1
