General: Application for shortening of chain.





WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: According to chain dimension.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10

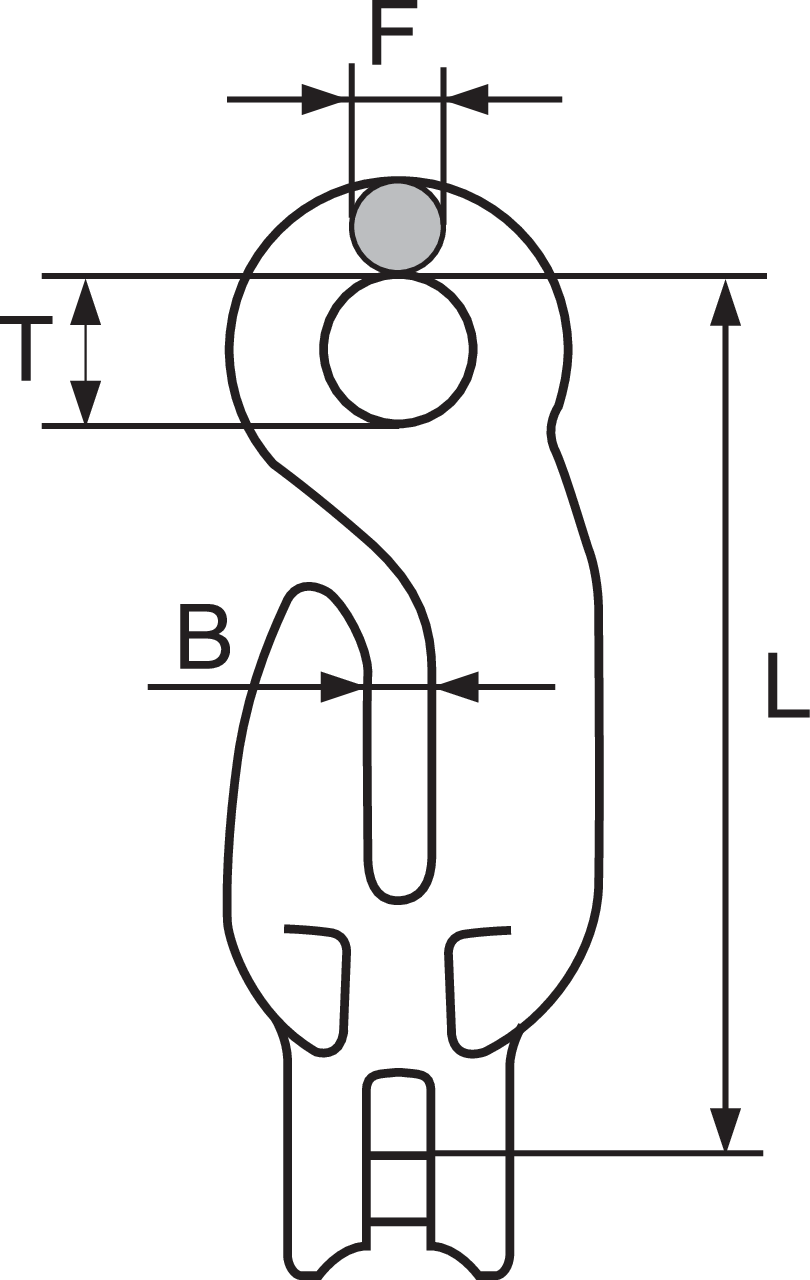

kwb_VK_S_225mm
kwb_VK_S_m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
For chain gr 10 Ø
mm
B
mm
F
mm
T
mm
L
mm
Weight
kg
CAD
11.2150448 VK/S-6-10 1.4 6 8 9 18 84 0.3
11.2169995 VK/S-7-10 1.9 7 10,5 12 24 122 0.62
11.2150449 VK/S-8-10 2.5 8 10,5 12 24 122 0.63
11.215045 VK/S-10-10 4 10 13 14 31 159 1.3
11.2150451 VK/S-13-10 6.7 13 15 18 37 203 2.7
11.2150452 VK/S-16-10 10 16 18 24 48 203 4.8
