KWB

General: Closes and locks automatically.

  • Marking: According to standard
  • Temperature range: -40 up to 200 degrees.
  • Standard: EN 1677-3
  • Safety factor: 4:1.
  • Grade: 12
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

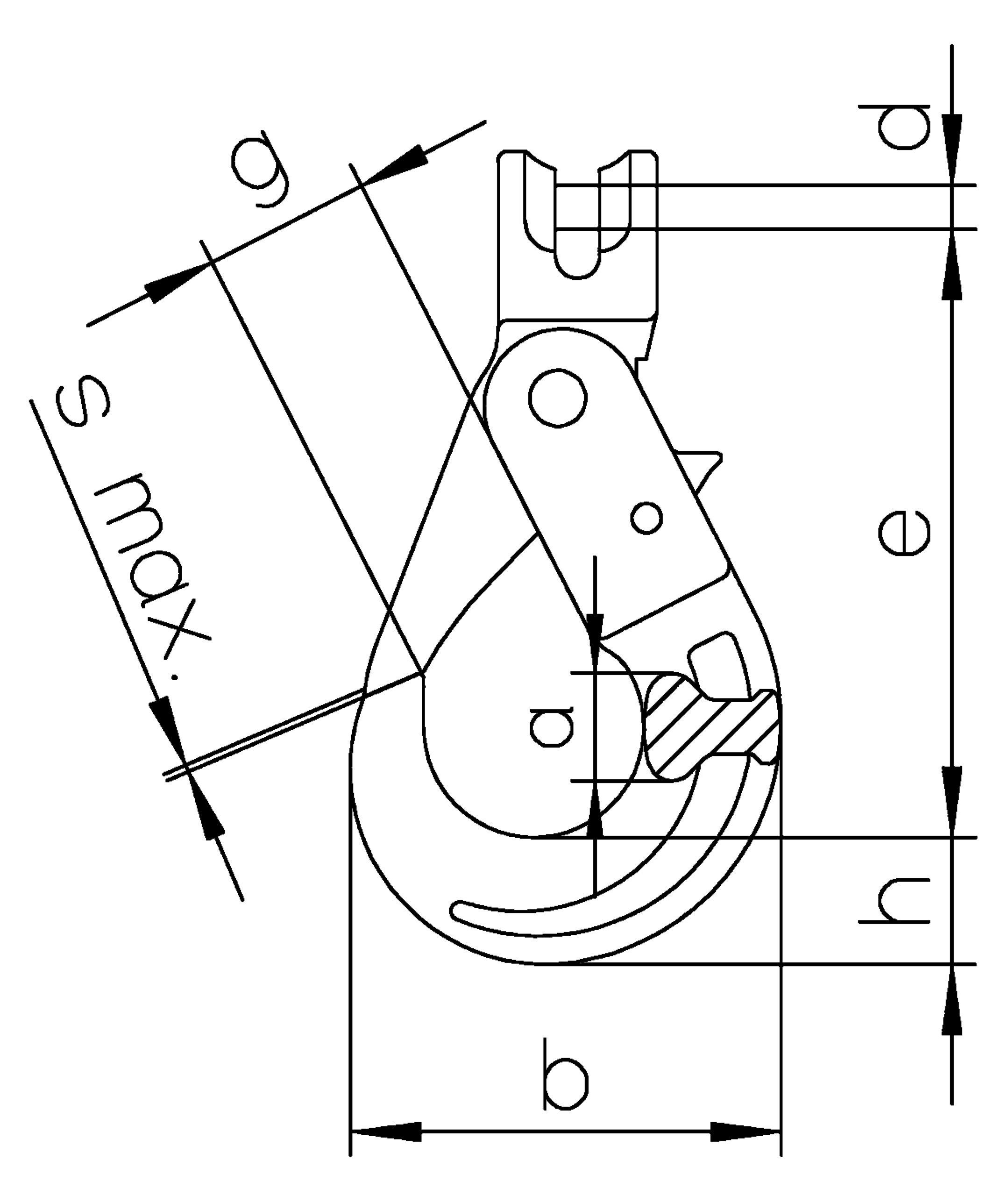

Part Code Code chain Ø (mm) WLL (kg) Chain Ø (inch) e (mm) h (mm) a (mm) b (mm) d
mm
g (mm) s max Weight
kg
CAD
11.19HKSB/SUN7 HKSB/SUN7 7 2,360 9/32 125 26 21 92 9.5 32 1 0.93
11.19HKSB/SUN8 HKSB/SUN8 8 3,000 5/16 124 26 21 92 9.5 32 1 0.93
11.19HKSB/SUN10 HKSB/SUN10 10 5,000 3/8 143 31 26 115 14 45 1 1.6
11.19HKSB/SUN13 HKSB/SUN13 13 8,000 1/2 183 42 35 145 17.5 54 2 3.5
11.19HKSB/SUN16 HKSB/SUN16 16 12,000 5/8 218 51 41 169 21 60 2 6.5
