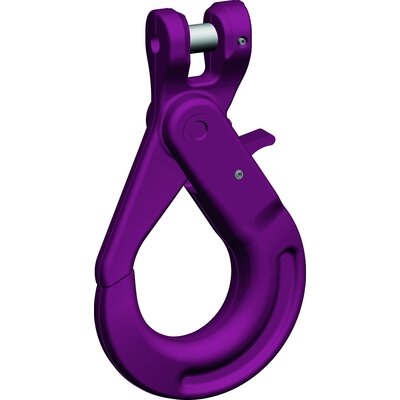

Clevis Self Locking Hook HKSB/SUN

Marking: According to standard
Temperature range: -40 up to 200 degrees
Standard: EN 1677-3

General: Closes and locks automatically.

Select a row from the table below, then click the add to quote button

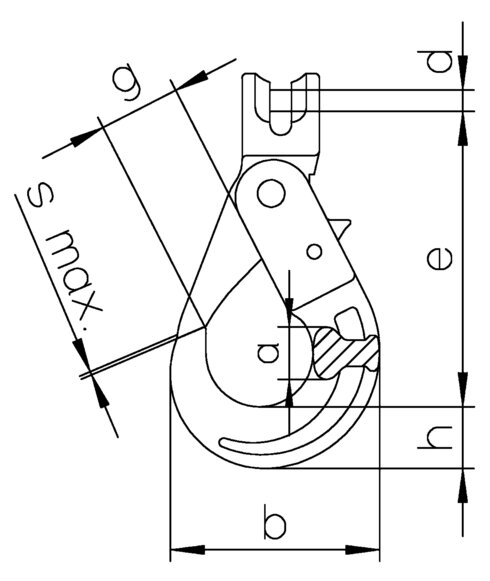

Part Code	Code	chain Ø mm	WLL kg	Chain Ø inch	e mm	h mm	a mm	b mm	d mm	g mm	s max	Weight kg
11.19HKSB/SUN7	HKSB/SUN7	7	2 360	9/32	125	26	21	92	9,5	32	1	0,93
11.19HKSB/SUN8	HKSB/SUN8	8	3,000	5/16	124	26	21	92	9,5	32	1	0,93
11.19HKSB/SUN10	HKSB/SUN10	10	5,000	3/8	143	31	26	115	14	45	1	1,6
11.19HKSB/SUN13	HKSB/SUN13	13	8,000	1/2	183	42	35	145	17,5	54	2	3,5
11.19HKSB/SUN16	HKSB/SUN16	16	12,000	5/8	218	51	41	169	21	60	2	6,5
