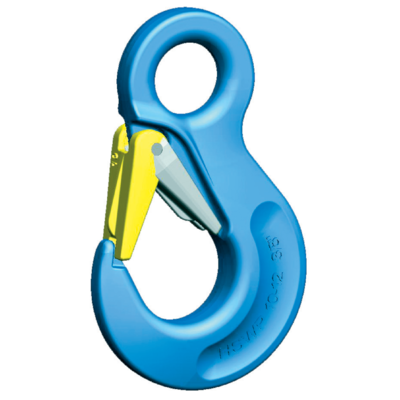

This eye sling hook is ideally suited for the pewag winner pro Connex system. It is universally usable and comes with a forged and galvanised safety catch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts. The safety catch with a latch, the safety pin and the stainless spring are available as a spare parts set for each hook and easy and quick to replace by a competent person.
- Material: Alloy steel.
- Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
- Temperature range: -60ºC up to +300ºC.
- Finish: Light blue powdercoated.
- Standard: EN 1677-2
- Warning: Not to be heat-treated.
- Safety factor: 4:1
- Grade: 12
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
