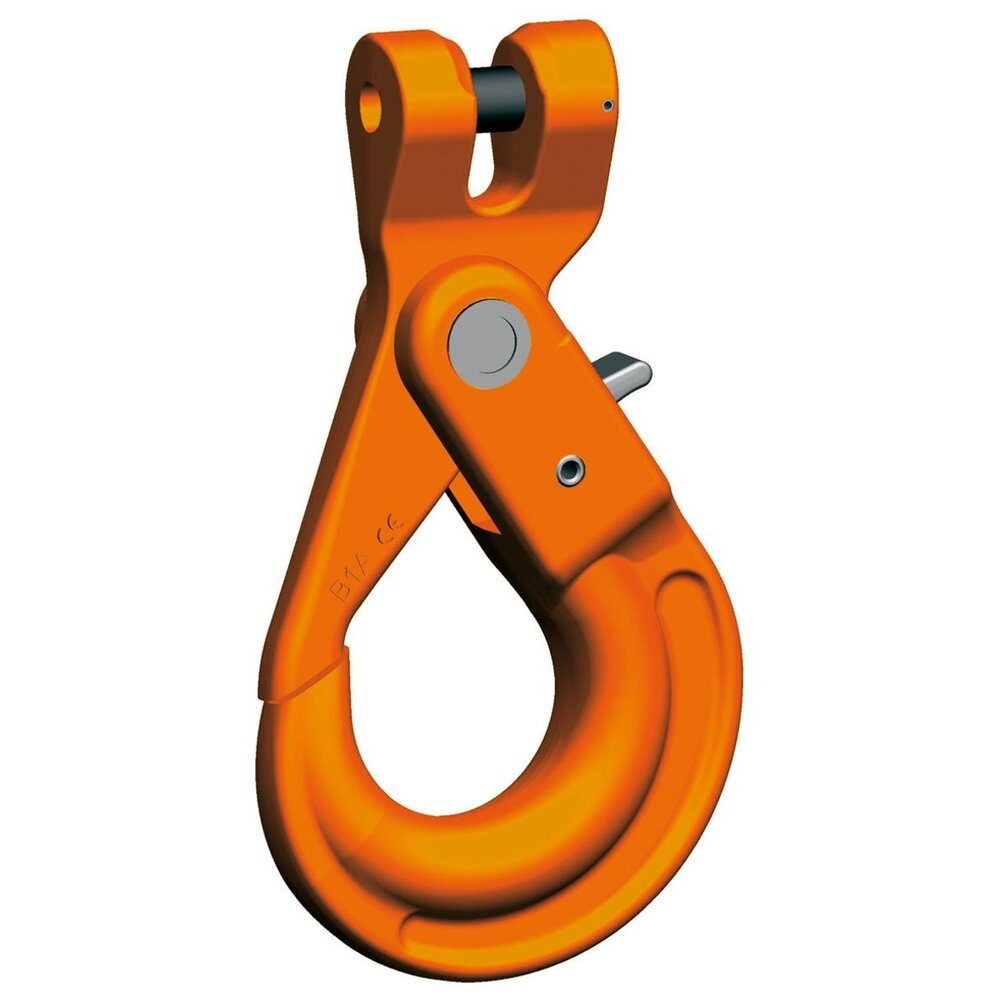

KLHW Clevis safety hooks are designed for the assembly of chain slings.
Closes and locks automatically.

  • Material: High duty grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-3
  • Safety factor: 4:1
  • Grade: 10
ZE_KLHW NEU 07
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
a
mm
b
mm
d
mm
e
mm
g
mm
h
mm
s max.
mm
Weight
kg
11.1632024 KLHW 5/6 1,4 17 71 7,4 94 28 20 1 0,56
11.1632047 KLHW 7 1,9 20 88 9 123 34 26 1 0,87
11.1632011 KLHW 8 2,5 20 88 10 123 34 26 1 1
11.1632052 KLHW 10 4 29 107 12,5 144 45 30 1 1,61
11.1632054 KLHW 13 6,7 35 138 16 180 52 40 1,5 3,25
11.1632056 KLHW 16 10 41 168 20 218 60 50 2 5,95
11.1684653 KLHW 19/20 16 50 194 24 259 70 62 2 12,89
11.1684657 KLHW 22 19 52 211 27 286 81 65 2 15,91
11.1684740 KLHW 26 26,5 61 253 33 338 100 79 2 21,33
