Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2*
(*ø 3mm - ø 7mm rope constrcution: 6x19M WSC 1960 N/mm2)

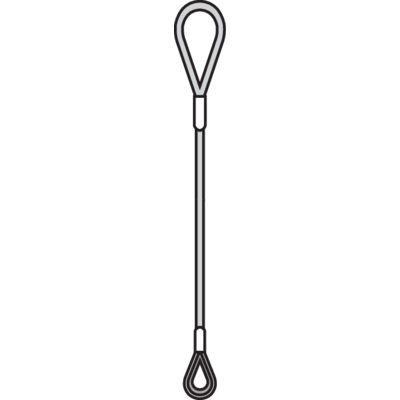

Design: One end soft eye. Other end thimble. Both mechanically spliced with alu. ferrule.
Load table at Technical Data -> Show table
Please specify the needed (working) length and eye diam/length with your request.
Other rope construction and/or end-terminations such as master links, shackles, hooks, etc.. possible on request. In that case, please check our website for more standard wire rope slings. You can also contact us to discuss the possible options or specify it with your request.
WLL straight pull, based on standard rope construction.
Specify the needed (working) length with your request
Steel Wire Rope Sling - Steel Core 2
ø 3 mm - 7 mm 6x19M WSC -1960N/mm2 / ø8 mm and up 6X36WS IWRC -1960N/mm2 - EN 13414-1
|
Safety Factor 5:1 |
Rope dia Ø | 1-part | 2-part | 3-4-part | Endless | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| Straight pull | Choke hitch | Basket hitch | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Straight pull | Choke hitch | Basket hitch | ||
| mm | Working load limit (WLL) in tons | ||||||||||
| 3 | 0,12 | 0.09 | 0.23 | 0,16 | 0,12 | 0,25 | 0,18 | 0,23 | 0,19 | 0,47 | |
| 4 | 0,21 | 0,17 | 0,42 | 0,29 | 0,21 | 0,44 | 0,31 | 0,42 | 0,33 | 0,84 | |
| 5 | 0,32 | 0,26 | 0,65 | 0,45 | 0,32 | 0,68 | 0,49 | 0,65 | 0,52 | 1,30 | |
| 6 | 0,47 | 0,37 | 0,94 | 0,66 | 0,47 | 0,98 | 0,70 | 0,94 | 0,75 | 1,87 | |
| 7 | 0,64 | 0,51 | 1,28 | 0,89 | 0,64 | 1,34 | 0,96 | 1,28 | 1,02 | 2,56 | |
| 8 | 0,82 | 0,66 | 1,64 | 1,15 | 0,82 | 1,72 | 1,23 | 1,64 | 1,31 | 3,28 | |
| 9 | 1,04 | 0,83 | 2,07 | 1,45 | 1,04 | 2,18 | 1,56 | 2,07 | 1,66 | 4,15 | |
| 10 | 1,28 | 1,02 | 2,56 | 1,79 | 1,28 | 2,69 | 1,92 | 2,56 | 5,05 | 5,12 | |
| 11 | 1,55 | 1,24 | 3,10 | 2,17 | 1,55 | 3,25 | 2,32 | 3,10 | 2,48 | 6,20 | |
| 12 | 1,84 | 1,47 | 3,67 | 2,57 | 1,84 | 3,85 | 2,75 | 3,67 | 2,94 | 7,34 | |
| 13 | 2,17 | 1,73 | 4,33 | 3,03 | 2,17 | 4,55 | 3,25 | 4,33 | 3,47 | 8,66 | |
| 14 | 2,51 | 2,01 | 5,03 | 3,52 | 2,51 | 5,28 | 3,77 | 5,03 | 4,02 | 10,06 | |
| 16 | 3,29 | 2,63 | 6,57 | 4,60 | 3,29 | 6,90 | 4,93 | 6,57 | 5,26 | 13,14 | |
| 18 | 4,15 | 3.,32 | 8,30 | 5,81 | 4,15 | 8,71 | 6,22 | 8,30 | 6,64 | 16,59 | |
| 20 | 5,12 | 4,10 | 10,24 | 7,17 | 5,12 | 10,75 | 7,68 | 10,24 | 8,19 | 20,48 | |
| 22 | 6,20 | 4,96 | 12,41 | 8,69 | 6,20 | 13,03 | 9,31 | 12,41 | 9,93 | 24,82 | |
| 24 | 7,38 | 5,90 | 14,76 | 10,33 | 7,38 | 15,5 | 11,07 | 14,76 | 11,81 | 29,51 | |
| 26 | 8,66 | 6,93 | 17,33 | 12,13 | 8,66 | 18,19 | 13,00 | 17,33 | 13,86 | 34,65 | |
| 28 | 10,04 | 8,03 | 20,08 | 14,06 | 10,04 | 21,08 | 15,06 | 20,08 | 16,06 | 40,16 | |
| 32 | 13,12 | 10,50 | 26,25 | 18,37 | 13,12 | 27,56 | 19,69 | 26,25 | 21,00 | 52,49 | |
| 36 | 16,59 | 13,67 | 33,19 | 23,23 | 16,59 | 34,84 | 24,89 | 33,19 | 26,55 | 66,37 | |
| 40 | 20,56 | 16,45 | 41,11 | 28,78 | 20,56 | 43,17 | 30,84 | 41,11 | 32,89 | 82,23 | |
| 44 | 24,78 | 19,82 | 49,56 | 34,69 | 24,78 | 52,04 | 37,17 | 49,56 | 39,65 | 99,12 | |
| 48 | 29,55 | 36,64 | 59,10 | 41,37 | 29,55 | 62,06 | 44,33 | 59,10 | 47,28 | 118,21 | |
| 52 | 34,69 | 27,75 | 69,38 | 48,57 | 34,69 | 72,85 | 52,04 | 69,38 | 55,51 | 138,76 | |
| Factor (KL) | 2 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
| When a multi-leg sling is used in a chocker hitch, reduce the values by 20% | |||||||||||
