Bridon
  • Right hand langs lay
  • Left hand langs lay
  • Bright
  • Galvanized
  • Compacted strands
  • Rotation resistant
  • Can be used with swivel

Very Low Rotation.
Superior bending fatigue life when compared with conventional low rotation ropes.
Excellent resistance to crushing and abrasion particuarly on multi layer drums resulting from the compacted strands.
Reduced elongation results from increased steel content and the Dyform process.
Plastic impregnation to further extend fatigue life, improve structural stability and resistance to corrosion.

ISO 4309 Rope Category No: 10-40mm RCN.23-2, 42-76mm RCN.31

  • Features: Extremely strong low rotation Crane Hoist Rope.
  • Material: High Carbon Steel
  • Marking: According to standard, CE-marked, On Termination ID
  • Finish: Galvanised or Ungalvanised
  • Standard: EN 12385-4
  • Fill factor: 0.76
Dyform 34LR
Dyform 34LR-PI
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
01.B3834L100G 10 90,8 95,3 51,4
01.B3834L110G 11 109 115 61,7
01.B3834L120G 12 130 137 72,9
01.B3834L130G 13 153 84,6

Larger sizes available on request.
10mm - 40mm

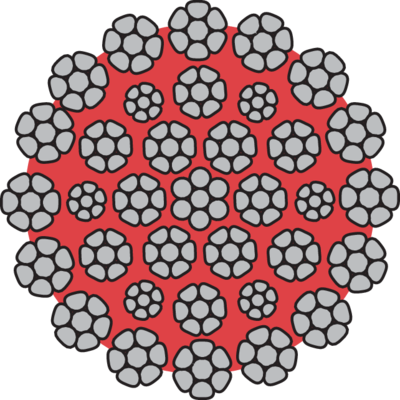

34x7 WSC - Compact Strands
42mm - 68mm
34x19 WSC - Compact Strands
70mm - 76mm
34x31 WSC - Compact Strands
