• Not for lifting

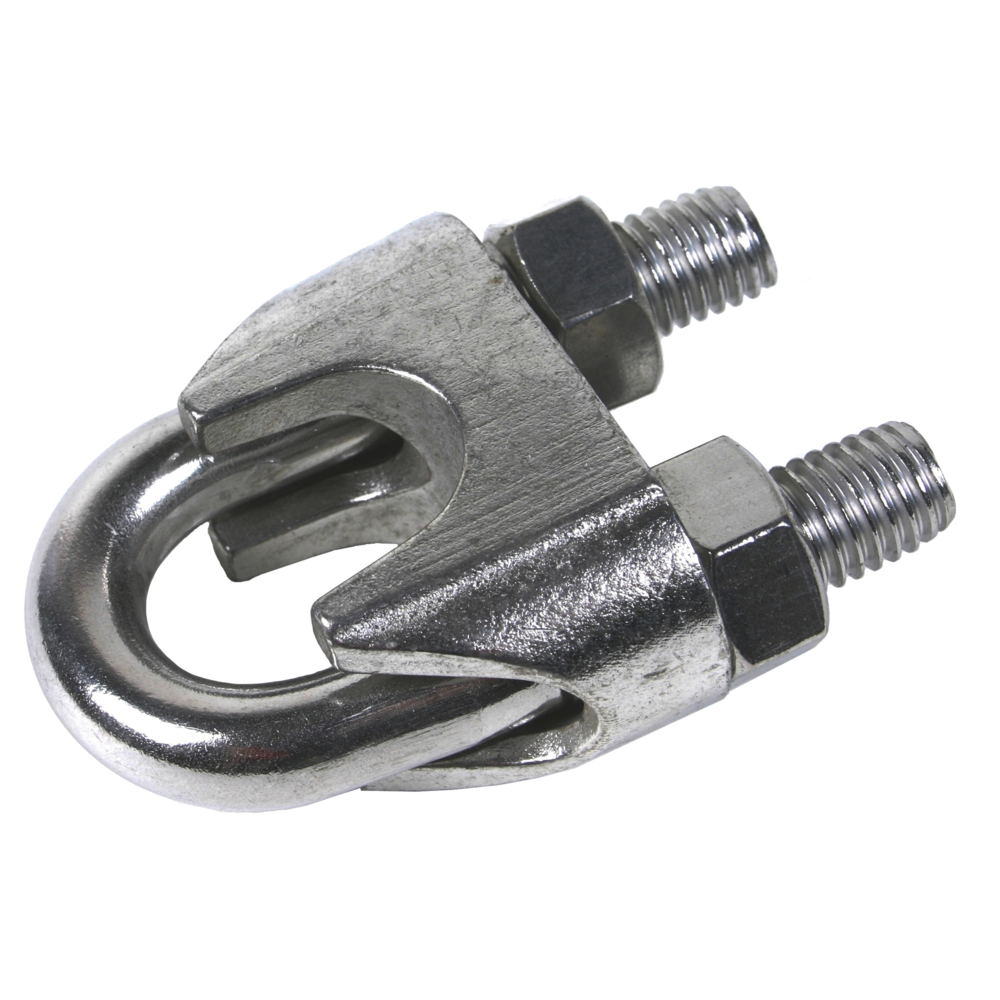

General: Wire rope clips for steel wire rope for general applications.
Design: Forged U-bolt and casted bases.


  • Material: Bases AISI 316, u-bolt AISI 304.
  • Marking: According to standard
  • Standard: DIN 741
  • Note: Follow the fitting instructions in the user manual before use.
kaus_ss
2001m_225mm
Select a row from the table below, then click the add to quote button

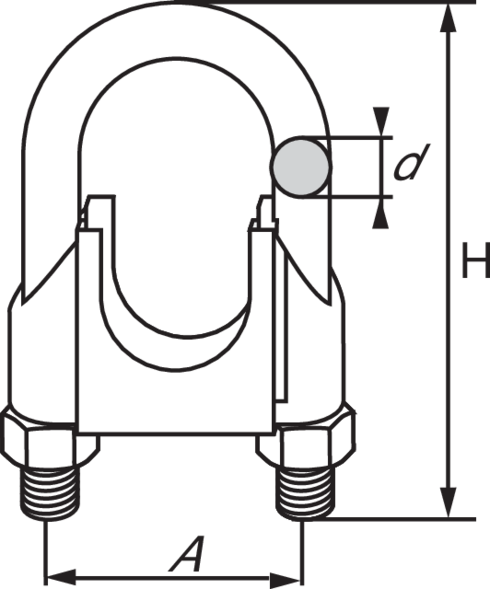

Part Code Rope diameter
mm
Weight
kg/100pc
10.1674103S 3 1,4
10.1674105S 5 1,5
10.1674106S 6 2,1
10.1674108S 8 4,1
10.1674110S 10 6,8
10.1674112S 12 13
10.1674116S 16 21
