Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results.

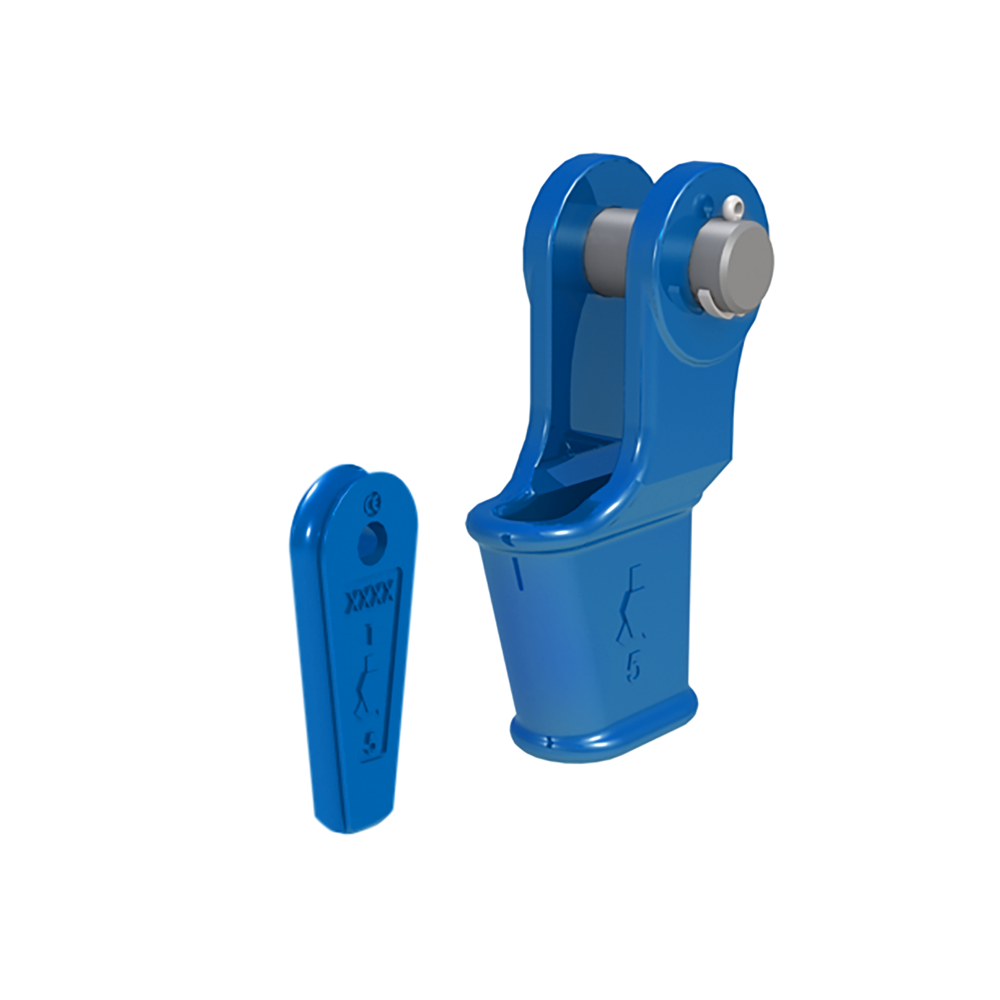

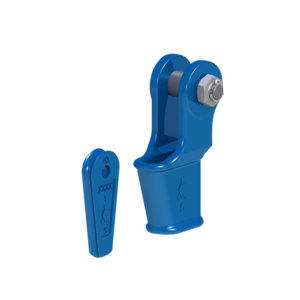

The wedge socket is delivered complete with wedge, pin and cotterpin.

2 surface finishes available:

  • Model OWS P : blue painted.
  • Model OWS PGAL : Hot dipped galvanized.

Model OWS0.25 and OWS0.5 only standard available in hot dipped galvanized.

  • Material: Quenched and tempered cast steel
  • Temperature range: -40°C to +100°C - Use at higher temperatures possible with reduction of WLL.
  • Finish: Blue painting or hot dipped galvanized
  • Note: The efficiency of a 6 and 8 strand wire rope/wedge socket connection is 80% of the minimum breaking load of the wire but limited to the minimum breaking load of the socket (MBL).
Select a row from the table below, then click the add to quote button

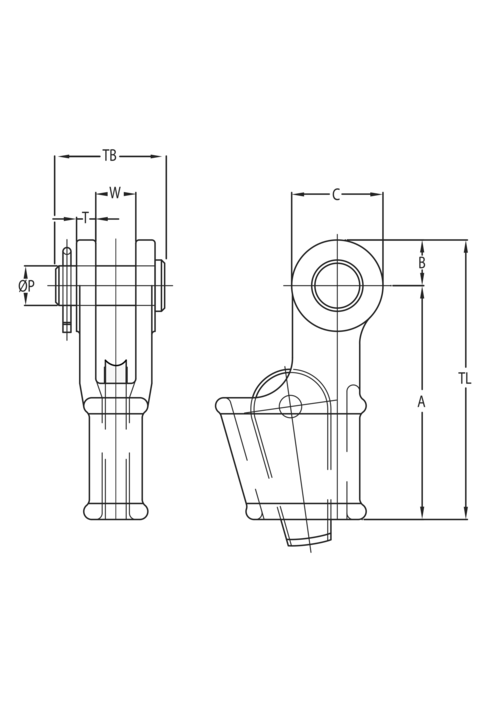

Part Code Rope diameter
mm
MBL
ton
ton
A
mm
B
mm
C
mm
øP
mm
T
mm
TL
mm
TB
mm
W
mm
Weight
kg
10.20OWS0.25P 7-8 8 110 18 36 16 9 128 51 18 0,8
10.20OWS0.25P.GAL 7-8 8 110 18 36 16 9 128 51 18 0,8
10.20OWS0.5P 9-10 12 145 23 46 21 11 168 63 21 1,7
10.20OWS0.5P.GAL 9-10 12 145 23 46 21 11 168 63 21 1,7
10.20OWS1P 11-13 20 157 29 57 25 12 185 67 25 2,1
10.20OWS1P.GAL 11-13 20 157 29 57 25 12 185 67 25 2,1
10.20OWS2P 14-16 25 190 35 70 30 15 225 85 31 4
10.20OWS2P.GAL 14-16 25 190 35 70 30 15 225 85 31 4
10.20OWS3P 18-19 40 210 40 80 35 16 250 95 38 7
10.20OWS3P.GAL 18-19 40 210 40 80 35 16 250 95 38 7
10.20OWS4P 20-22 55 252 48 95 41 18 300 110 44 10
10.20OWS4P.GAL 20-22 55 252 48 95 41 18 300 110 44 10
10.20OWS5P 23-26 75 298 55 110 51 22 353 128 51 15
10.20OWS5P.GAL 23-26 75 298 55 110 51 22 353 128 51 15
10.20OWS6P 27-29 90 322 65 130 57 25 387 142 57 21
10.20OWS6P.GAL 27-29 90 322 65 130 57 25 387 142 57 21
10.20OWS7P 30-32 110 350 73 146 63 28 423 155 63 31
10.20OWS7P.GAL 30-32 110 350 73 146 63 28 423 155 63 31
10.20OWS8P 34-36 125 400 74 148 64 28 474 160 70 37
10.20OWS8P.GAL 34-36 125 400 74 148 64 28 474 160 70 37
10.20OWS9P 37-39 150 450 80 142 70 30 530 177 77 51
10.20OWS9P.GAL 37-39 150 450 80 142 70 30 530 177 77 51
10.20OWS10P 40-42 170 500 87 160 76 33 587 187 76 64
10.20OWS10P.GAL 40-42 170 500 87 160 76 33 587 187 76 64
10.20OWS11P 43-48 225 550 100 186 89 39 650 215 89 96
10.20OWS11P.GAL 43-48 225 550 100 186 89 39 650 215 89 96
10.20OWS12P 49-52 280 637 105 205 95 46 740 244 101 130
10.20OWS12P.GAL 49-52 280 637 105 205 95 46 740 244 101 130
10.20OWS13P 54-58 360 660 125 250 108 54 785 275 114 180
10.20OWS13P.GAL 54-58 360 660 125 250 108 54 785 275 114 180
10.20OWS14P 60-68 425 835 135 270 121 60 970 300 127 275
10.20OWS14P.GAL 60-68 425 835 135 270 121 60 970 300 127 275
10.20OWS15P 72-76 460 1 000 150 300 133 76 1 150 355 146 440
10.20OWS15P.GAL 72-76 460 1 000 150 300 133 76 1 150 355 146 440
10.20OWS16P 81-86 625 1 160 150 300 140 79 1 310 375 159 510
10.20OWS16P.GAL 81-86 625 1 160 150 300 140 79 1 310 375 159 510
