• Not for lifting

General: Wire rope clips for steel wire rope for general applications.
Design: Forged u-bolts and casted bases.

  • Marking: According to standard
  • Finish: Electro-Galvanised
  • Standard: DIN 741

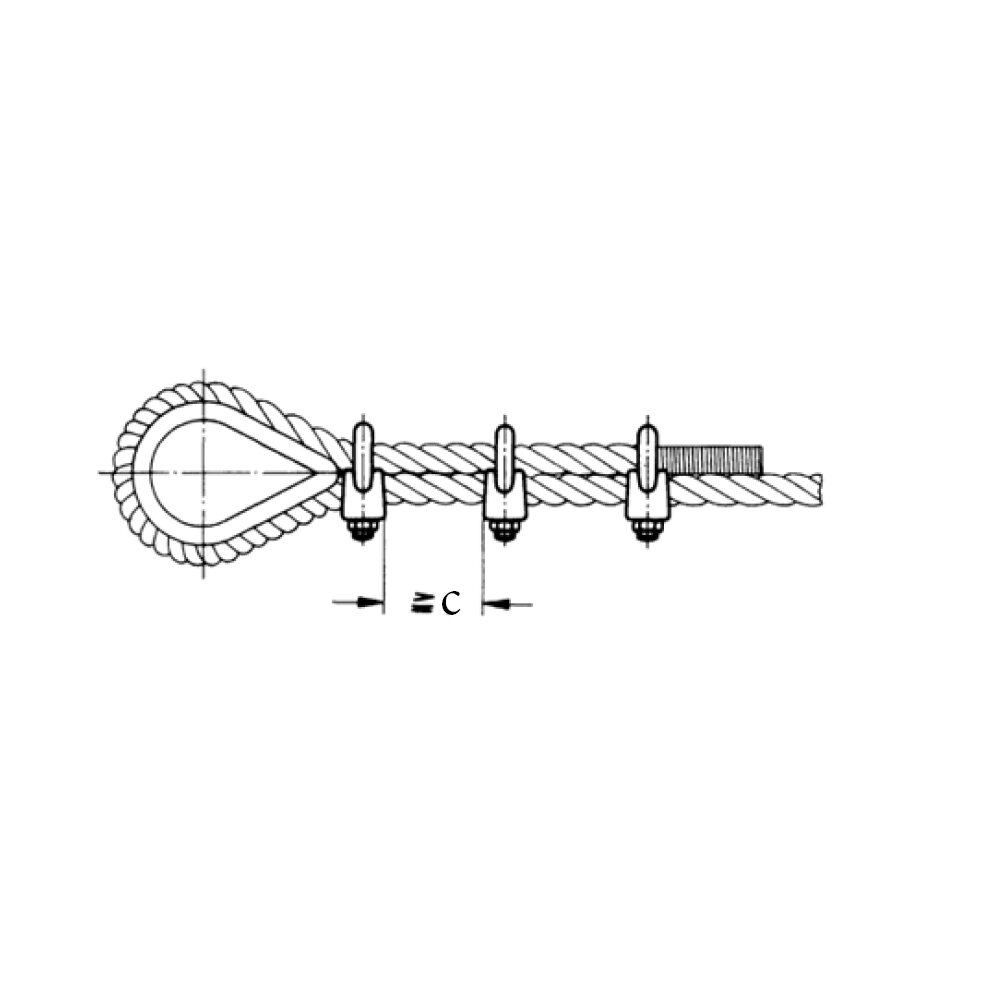

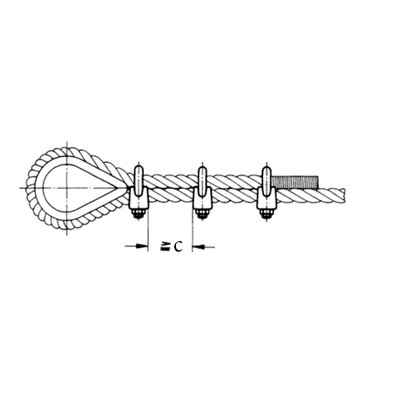

  • Note: Follow the fitting instructions in the user manual before use.
  • Warning: Not for lifting

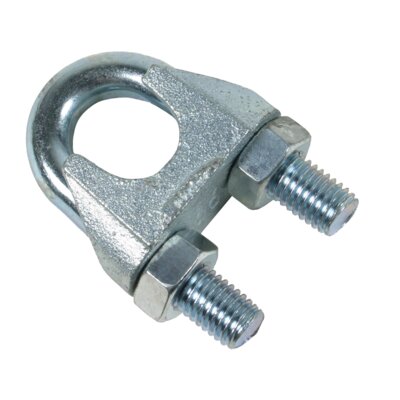

Galvanized U-bolt wire rope grip

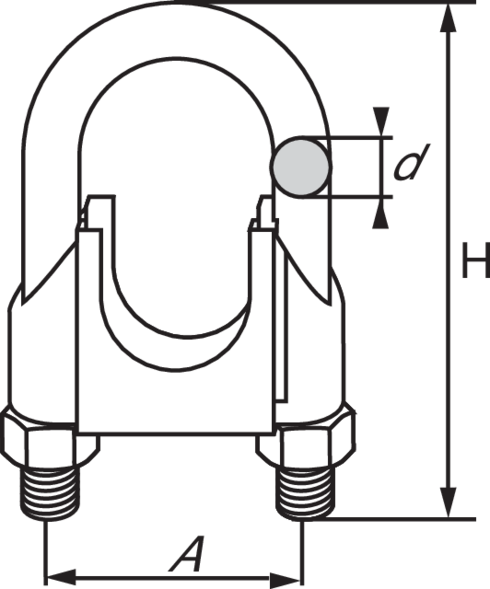

Wire rope grip U-bolt measurements
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Weight
kg/100pc
10.1574103 3 1,4
10.1574105 5 1,5
10.1574106 6 2,1
10.1574108 8 4,1
10.1574110 10 6,8
10.1574113 13 13
10.1574116 16 21
10.1574119 19 28
10.1574122 22 40
10.1574126 26 44
10.1574130 30 66
10.1574134 34 85
10.1574140 40 104
