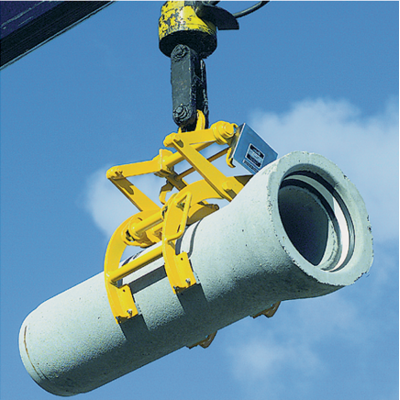

For concrete pipes. Standard grabs to suit pipes from 15 to 60 cm. Special grabs for pipes from 80 to 160 cm.

  • Finish: Yellow painted.
Mech grab RB illu
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Jaw width
mm
Type Rubber pad A
mm
C
mm
D
mm
E
mm
Weight
kg
CAD
16.85RB15/25-174501 0.25 208-325 RB 15/25 Steel 100 510 530 210 21
16.85RB20/30-022101 0.5 250-400 RB 20/30 Steel/RB 410 625 650 310 50
16.85RB30/40-016301 0.6 390-550 RB 30/40 Steel/RB 410 740 720 360 65
16.85RB40/50-016801 1 515-655 RB 40/50 Steel/RB 410 900 840 435 85
16.85RB50/60-016701 1.6 630-780 RB 50/60 Steel/RB 410 1,040 970 580 120
16.85RB50/60-133000 1.6 630-840 RB 50/60 S Steel/RB 410 1,040 970 580 120

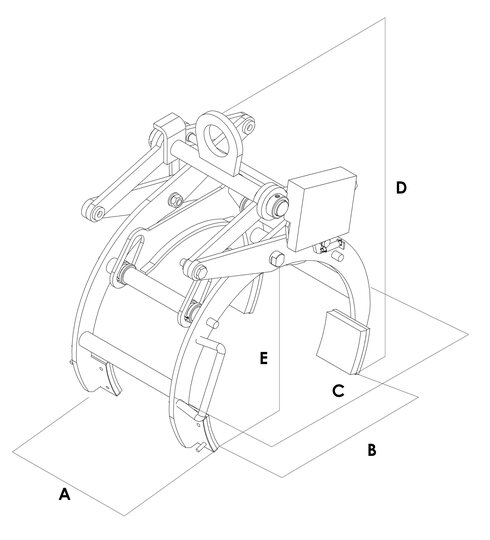

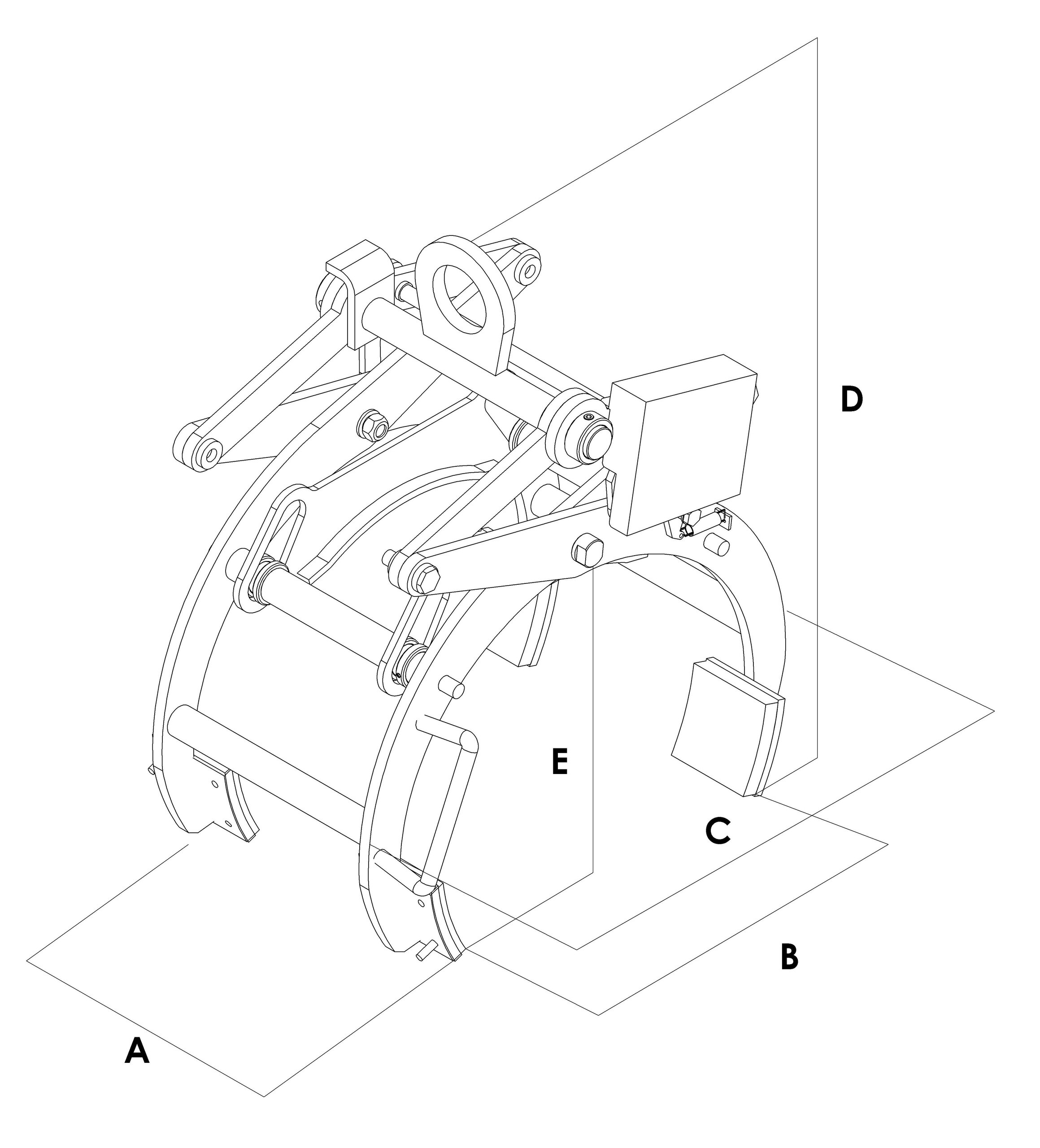

B is Jaw width mm

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
