Lifting grab for lifting of flags

Home / Products / Special products / Lifting Grabs / Scissor Grab for Flags/Kerbstones BSV

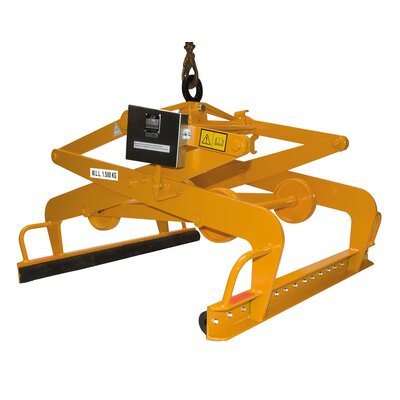

Lifting grab for lifting and handling of kerb/paving stones, etc.
The lifting grab is provided with replaceable rubber pads.

Finish: Yellow painted.

Scissor Grab for Flags/Kerbstones BSV

Select a row from the table below, then click the add to quote button

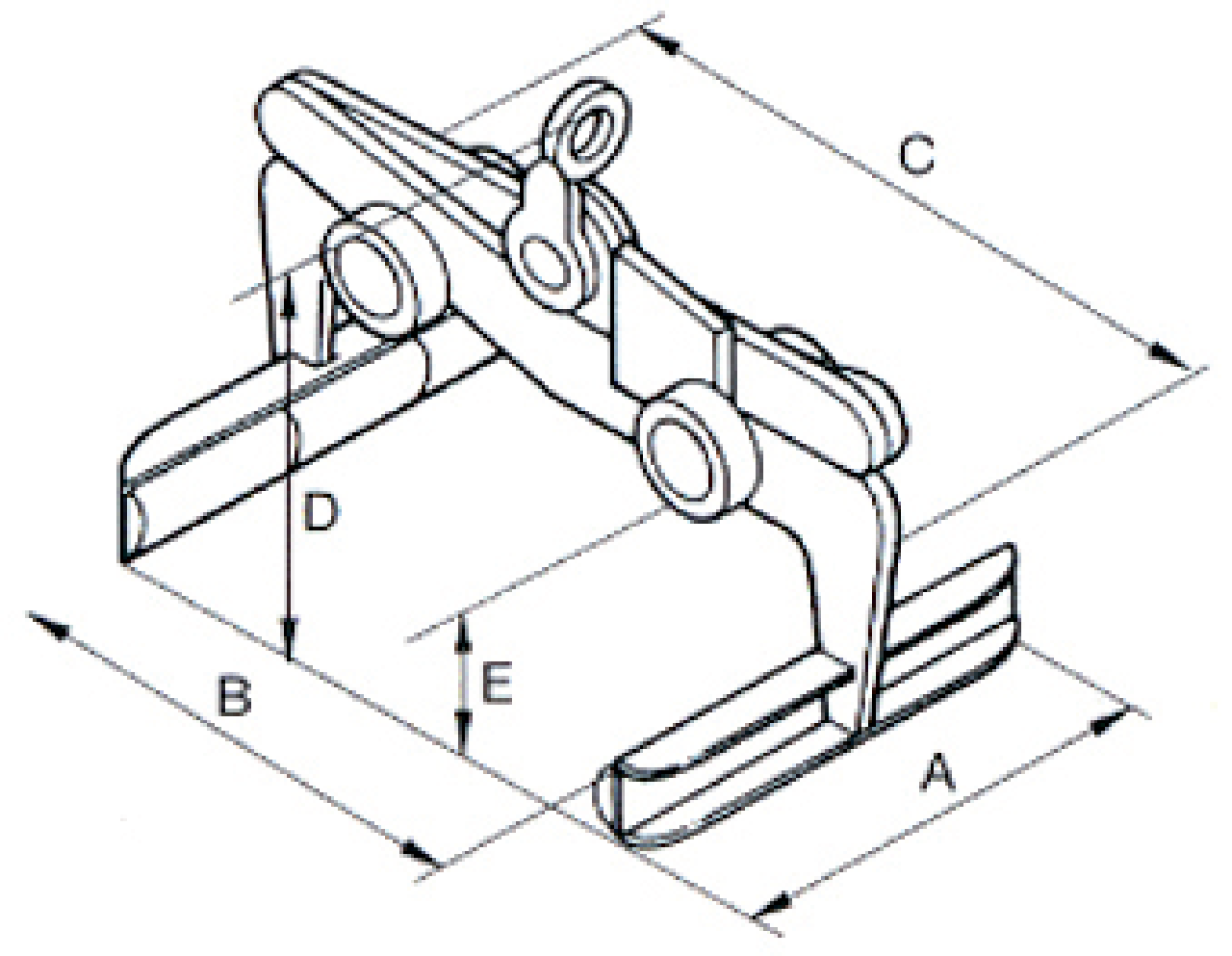

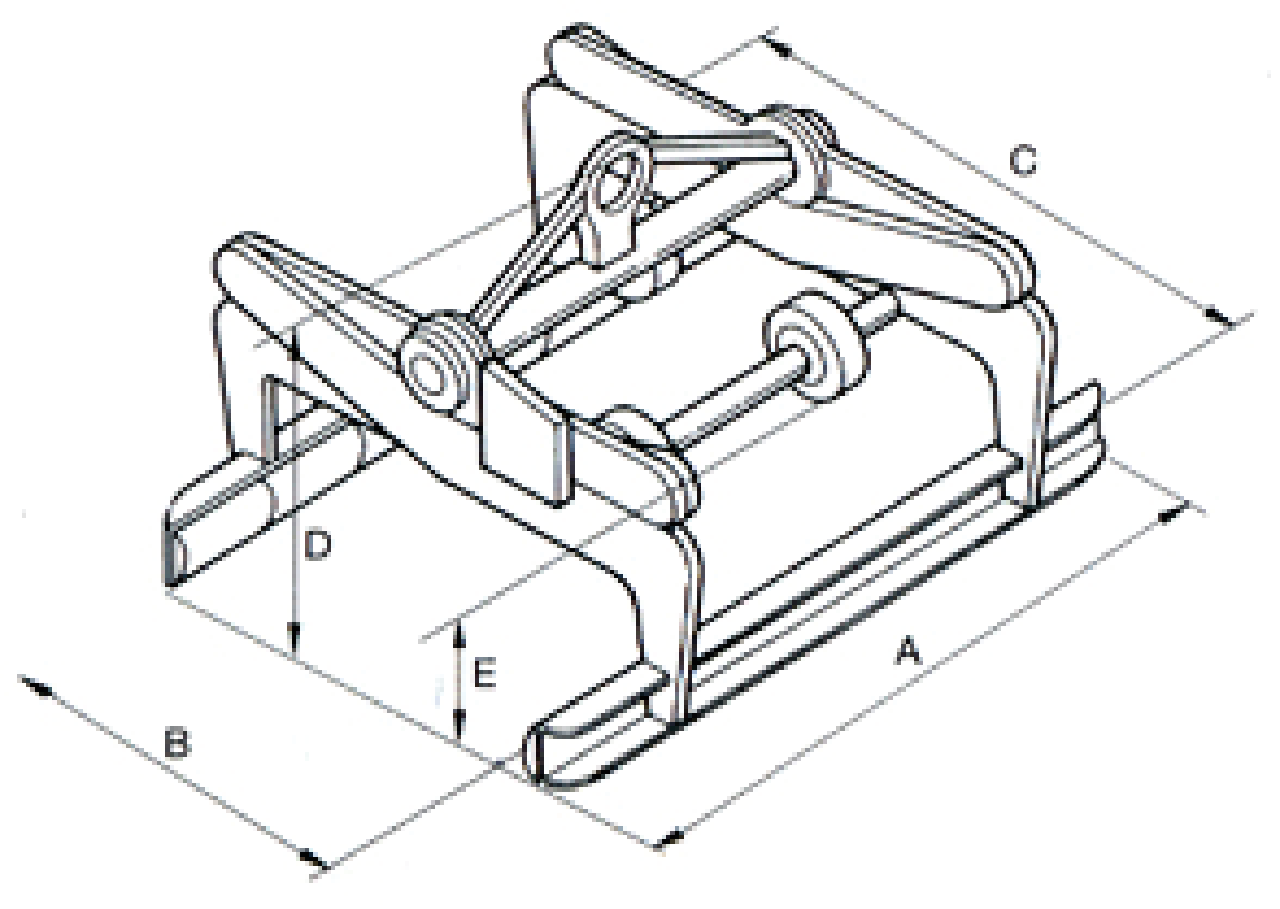

Part Code	WLL ton	Type	Rubber pad	Unit weight kg	A mm	B mm	C mm	D mm	E mm
16.86110203	0.7	203	GS20	60	600	400-650	925	710-1.090	200
16.86110304	0.7	304	GS20	70	600	600-850	1.115	710-1.130	205
16.86110400	0.7	400	GS20	80	600	800-1.050	1.335	760-1.170	245
16.86110406	1.5	406	GS20	125	1,200	400-650	930	710-1.090	200
16.86110608	1.5	608	GS20	140	1,200	600-850	1.115	710-1.130	205
16.86110801	1.5	801	GS20	150	1,200	800-1.050	1.335	760-1.170	245
