Elephant
General: Elephant plain trolleys are top quality. With a solid and compact design Elephant trolley is adjustable to any beam width within specified range by simple adjustment of No. of spacers. Wheels with high grade sealed ball bearings are made to fit any shape of “I” beam. For extra safety, units come with Anti Drop Plates.

Proof load: 1,5 x WLL.
  • Marking: WLL, code and CE marking.
  • Finish: Painted.

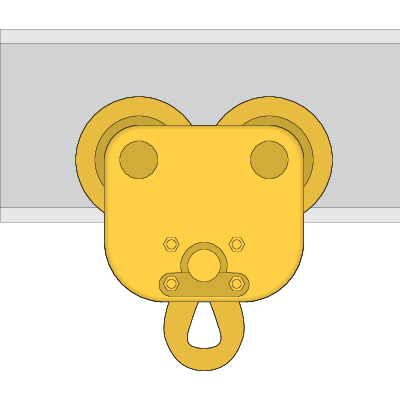

    Trolley_elephant

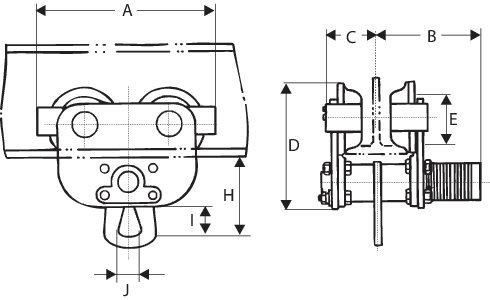

    Trolley_elephant_measure
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Beam width
    mm
    Min curve radius
    m
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    H
    mm
    I
    mm
    J
    mm
    Weight
    kg
    06.60BV050 0,5 60-130 0,9 229 130 68 160 70 108 38 28 8
    06.60BV100 1 60-130 1,1 250 130 68 172 80 112 40 30 11
    06.60BV200 2 70-155 1,2 308 155 80 209 98 150 60 40 19
    06.60BV310 3,15 90-160 1,7 326 152 94 239 115 175 65 50 27
    06.60BV500 5 90-180 2,3 367 183 102 298 125 220 80 60 49
    06.60BV750 7,5 125-190 3 470 187 187 290 158 245 100 80 98
    06.60BV1000 10 125-190 3 470 187 187 290 158 245 100 80 100
    06.60BV1600 16 150-190 6 669 230 230 410 197 370 150 140 295
    06.60BV2000 20 150-190 6 669 230 230 410 197 370 155 140 400
