KWB

Design: Masterlink with shortening hook/link.





WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_GVK_S2_225mm
kwb_GVK_S2_m_225mm
Select a row from the table below, then click the add to quote button

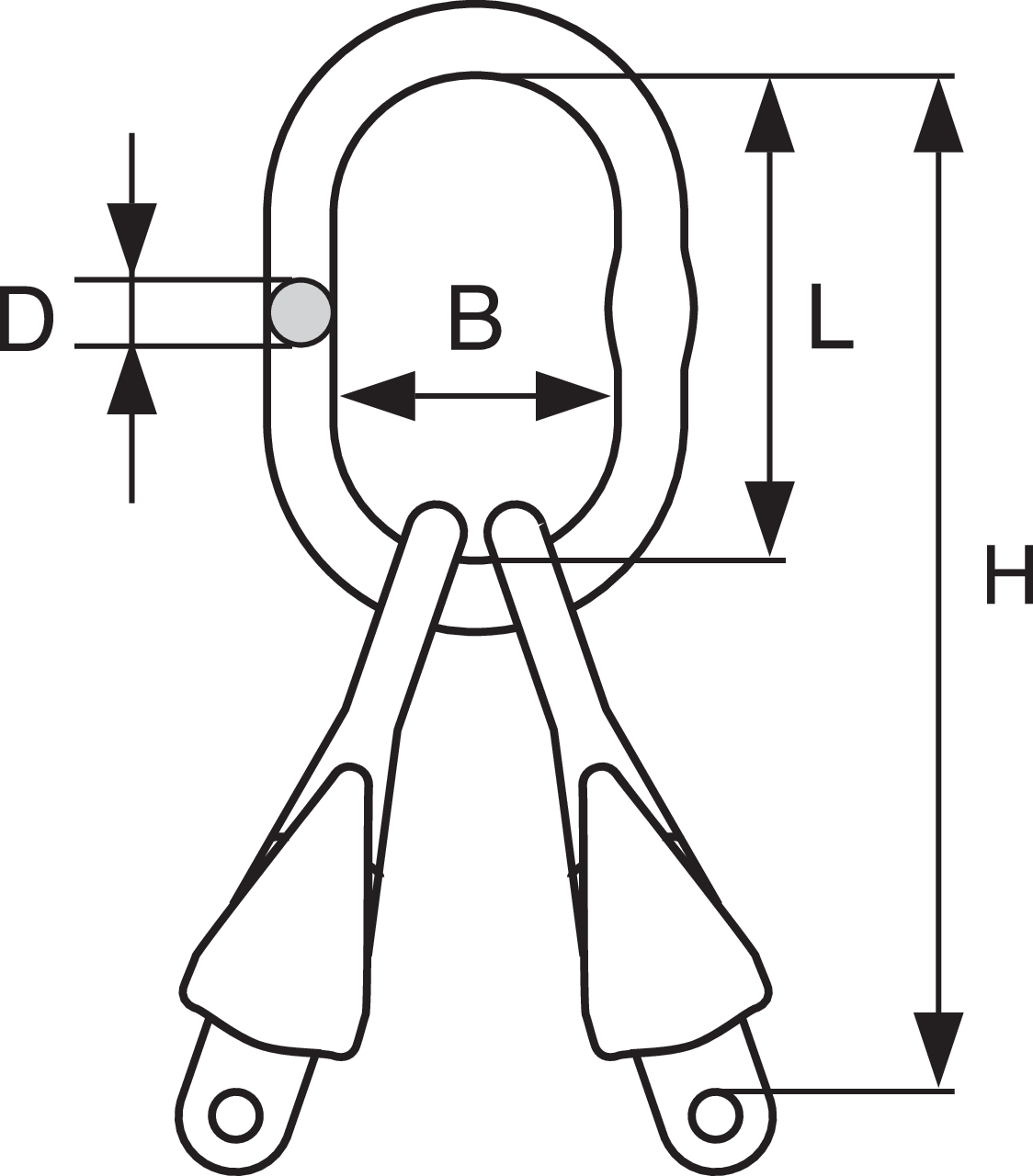

Part Code Code WLL
ton
For chain gr 10 Ø (mm) WLL 45-60º (ton) B
mm
D
mm
H
mm
L
mm
Weight
kg
CAD
11.0213818 GTVK/S2-6-10 2 6 1,4 70 14 204 120 1
11.0273256 GTVK/S2-7-10 2.65 7 1,9 80 16 262 140 1.9
11.0285409 GTVK/S2-8-10 3.55 8 2,5 95 19 282 160 2.4
11.0273258 GTVK/S2-10-10 5.6 10 4 105 23 329 170 4.2
11.0273260 GTVK/S2-13-10 9.5 13 6,7 110 27 393 190 8.1
11.0213816 GTVK/S2-16-10 14 16 10 130 33 464 230 14.4
