Material: Alloy steel grade 10.
Marking: According to standard, CE-marked, Code and grade.
Finish: Painted.
Standard: EN 1677-4

WARNING! Not to be heat-treated.

Select a row from the table below, then click the add to quote button

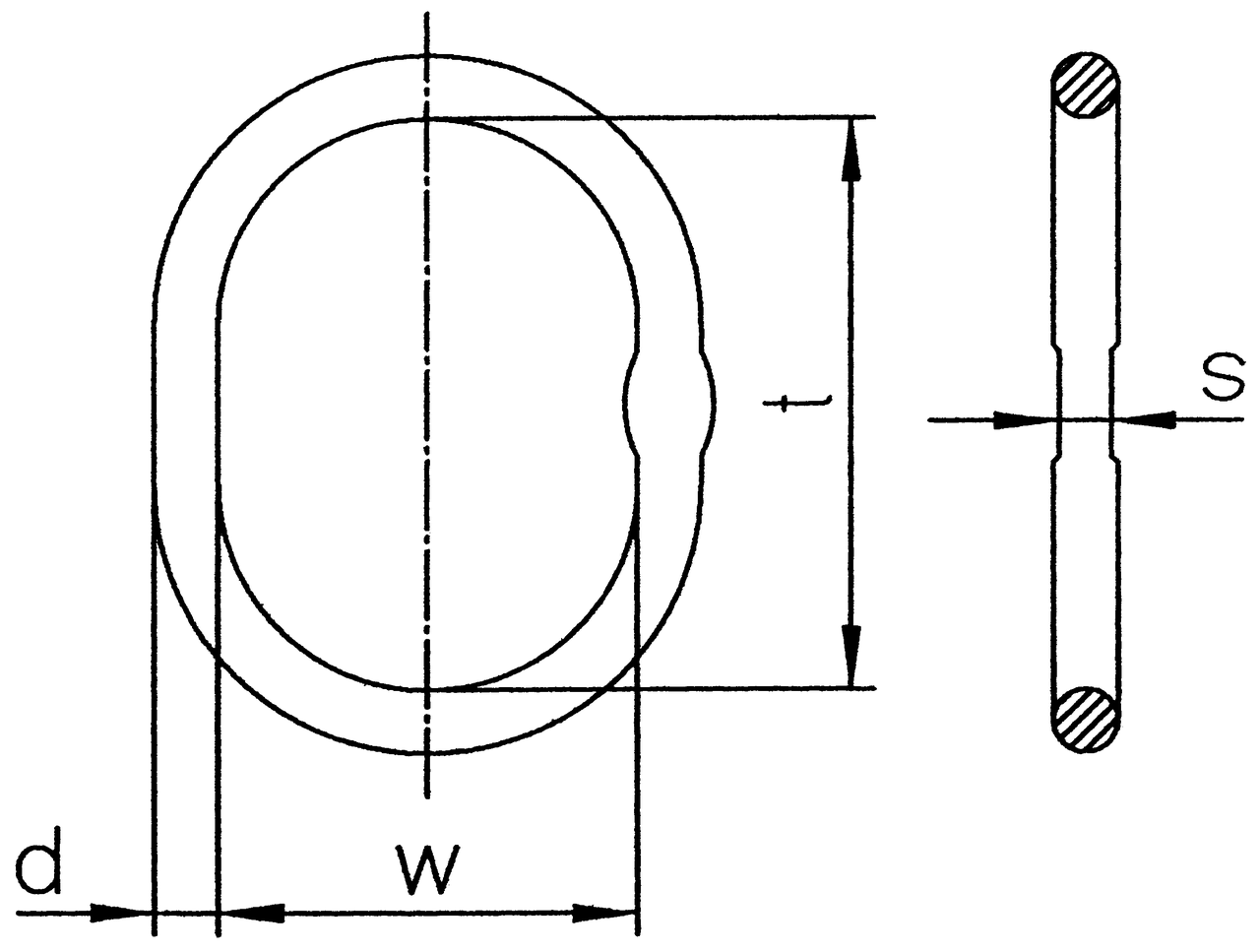

Part Code	Code	WLL ton	Chain mm	D mm	t mm	s mm	w mm	Weight kg
11.021262	A/S-13-10	2,3	6	13	110	10	60	0,34
11.021256	A/S-16-10	3,5	7	16,5	110	14	60	0,53
11.021256	A/S-18-10	5	8	19	135	14	75	0,92
11.021257	A/S-22-10	7,6	10	23	160	17	90	1,6
11.021258	A/S-26-10	10	13	27	180	20	100	2,5
11.021259	A/S-32-10	14	16	33	200	26	110	4,1
11.02126	A/S-36-10	25,1	19	36	260		140	6,2
11.0270046	A/S-45-10	30,8	22	45	340		180	13
11.027005	A/S-50-10	40	26	50	350		190	17
