• Not for lifting


Standard: DIN 5299 C


WARNING!Not for lifting.



  • Material: Stainless AISI 316.

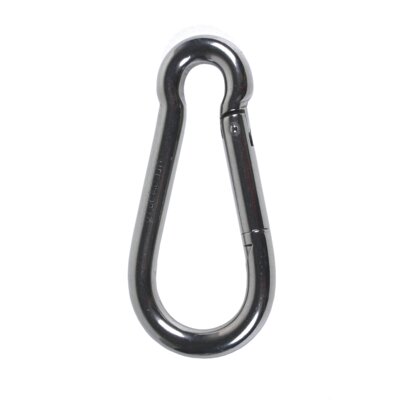

    Quality Snap Hook AISI 316, which is a stainless snap hook
    Snap hook measurements
    Select a row from the table below, then click the add to quote button
    Part Code Code Length
    mm
    MBL
    kg
    B
    mm
    D
    mm
    L
    mm
    S
    mm
    T
    mm
    Weight
    kg/100pc
    11.565299C06S 2402-S 60 670 8 7 60 6 9 3
    11.565299C08S 2404-S 80 870 11 10 80 8 12 7
    11.565299C10S 2406-S 100 1 150 15 12 100 10 15 13
    11.565299C11S 2408-S 120 1 250 18 15 120 11 18 18
    Larger dimensions and performance with ratchet screw on request.
