Green Pin

Certification: at no extra charge this product can be supplied with a works certificate,
a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: Painted red or white
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton

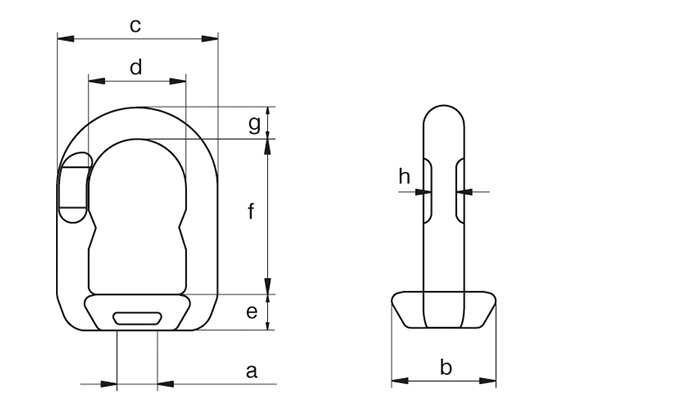

Diameter Thread a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
h
mm
Weight
kg
CAD
11.40EL6R 11 0.2 M6 x 1.00 31 51 30 14 44 6 6 0.15
11.40EL8R 11 0.4 M8 x 1.25 31 51 30 14 44 11 6 0.15
11.40EL10R 11 0.7 M10 x 1.50 31 51 30 14 44 11 6 0.15
11.40EL12R 12 1 M12 x 1.75 39 56 32 15 48 12 6 0.23
11.40EL14R 12 1.2 M14 x 2.00 39 56 32 15 48 12 6 0.23
11.40EL16R 14 1.5 M16 x 2.00 44 65 37 16 60 14 8 0.4
11.40EL18R 14 2 M18 x 2.50 44 65 37 16 60 14 8 0.4
11.40EL20R 14 2.5 M20 x 2.50 44 65 37 16 60 14 8 0.4
11.40EL22R 16 3 M22 x 2.50 52 80 48 21 75 16 11 0.63
11.40EL24R 16 4 M24 x 3.00 52 80 48 21 75 16 11 0.63
11.40EL27R 16 5 M27 x 3.00 52 80 48 21 75 16 11 0.63
11.40EL30R 21 6 M30 x 3.50 66 96 58 25 88 21 14 1.11
11.40EL33R 21 7 M33 x 3.50 66 96 58 25 88 21 14 1.11
11.40EL36R 25 8 M36 x 4.00 84 121 73 39 100 25 17 2.22
11.40EL39R 25 9 M39 x 4.00 84 121 73 39 100 25 17 2.22
11.40EL42R 25 10 M42 x 4.50 84 121 73 39 100 25 17 2.22
11.40EL45R 25 15 M45 x 4.50 90 132 82 42 121 25 22 2.73
11.40EL48R 25 18 M48 x 5.00 90 132 82 42 121 25 22 2.73
