General: LHW Safety hooks are designed for the assembly of pewag connex system.
This hook has a large eye, which is suitable for ropes and webbing slings.
Automatically closes and locks under load and requires the load to be grounded before load can be released

Features:

  • Self-closing and locking load hook
  • Larger jaw opening than the HSW
  • Locking set is available as a spare part
  • Marking: According to standard, CE-marked
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-3
  • Note: Not for welded system!
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

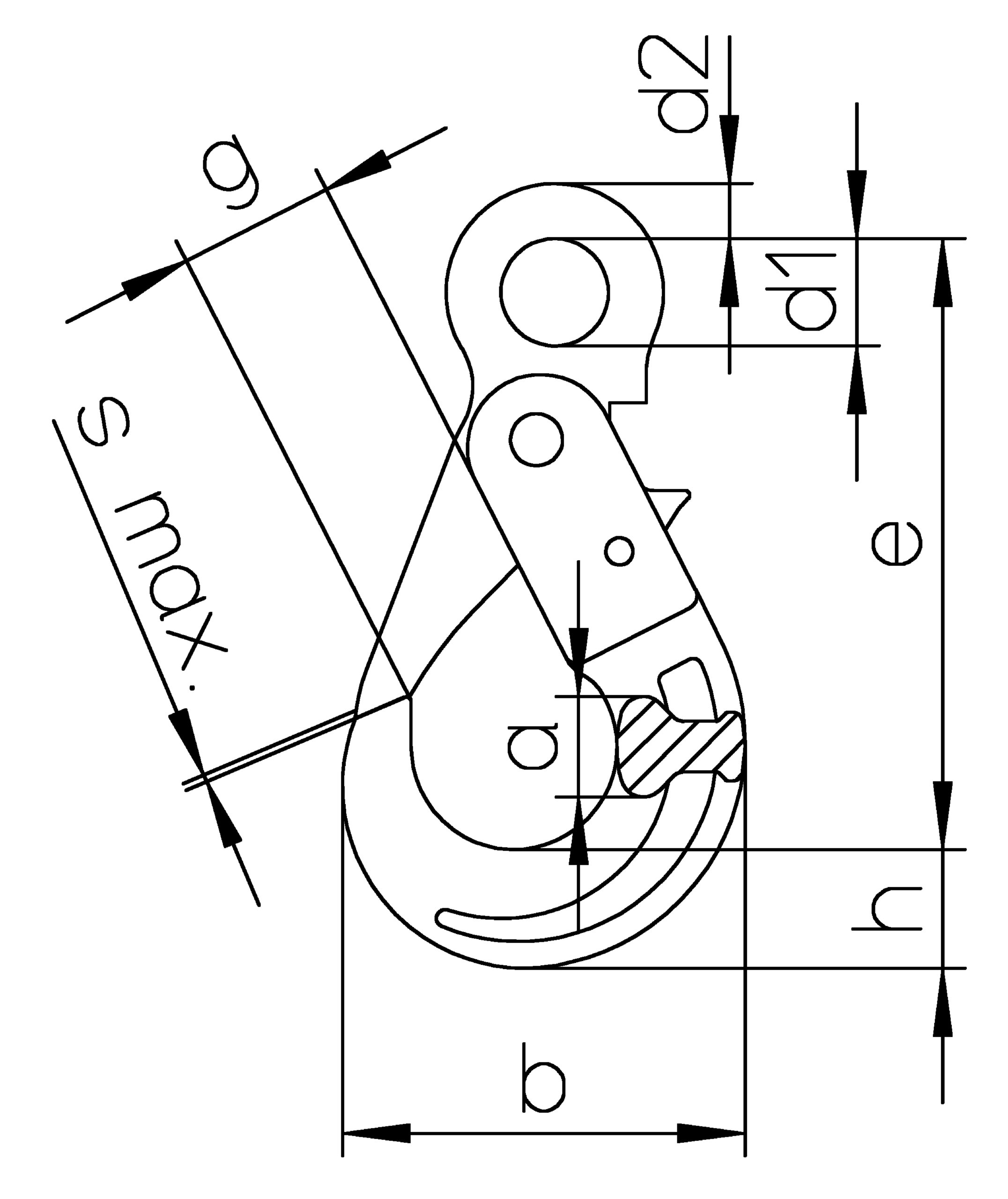

Part Code Code WLL
ton
a
mm
b
mm
d1
mm
d2
mm
e
mm
g
mm
h
mm
s max.
mm
Weight
kg
CAD
11.1649496 LHW 5/6 1.4 17 71 21 11 110 28 20 1 0.53
11.1649497 LHW 7/8 2.5 20 88 25 12 136 34 26 1 0.92
11.1649498 LHW 10 4 29 107 35 15 169 45 30 1 1.57
11.1649499 LHW 13 6.7 41 138 40 20 205 52 40 1.5 3.19
11.1649500 LHW 16 10 50 168 50 27 251 60 50 2 6.24
11.1667163 LHW 19/20 16 52 194 60 30 290 70 62 2 9.75
11.1667165 LHW 22 19 61 211 70 32 322 81 65 2 12.45
11.1606300 LHW 26 26.5 61 253 82 42 383 100 79 2 20
