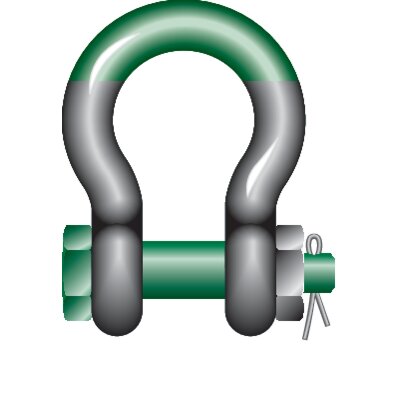

Bow shackles with safety bolt.
Certification: This product can be supplied with works certificate, 3.1 material certificate, manufacturer test certificate, EC Declaration of Conformity. All shackles starting from 150 tons are supplied with a Lloyd’s Register of Shipping Certificate on proof load.
Standard: Meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B.
- Material: Bow and pin alloy steel, Grade 8, quenched and tempered
- Temperature range: -20°C up to +200°C
- Finish: Hot dip galvanized (175 ton shackle is painted)
- Safety factor: 5:1
- Grade: 8
