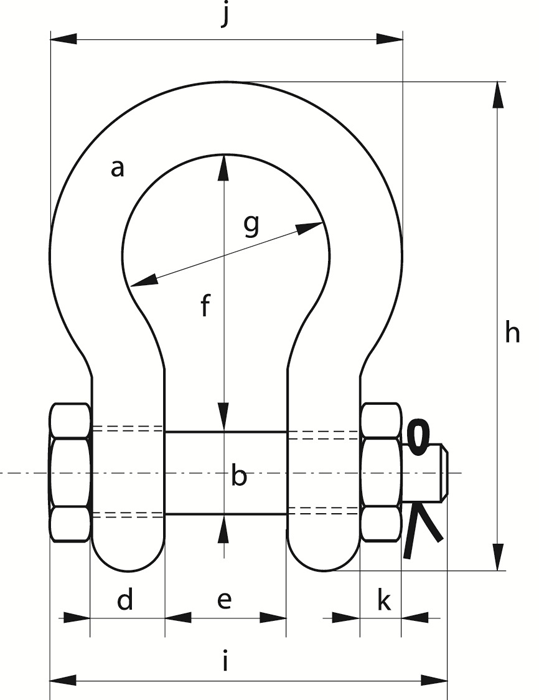

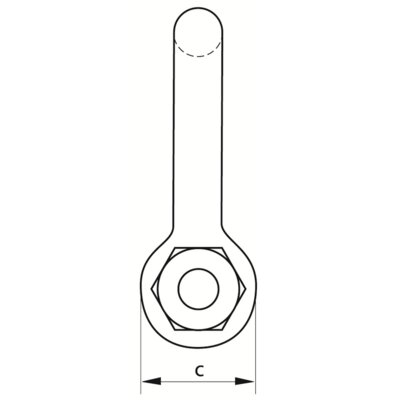

Bow shackles with safetybolt, for use under extreme climatic conditions.
Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A
Safety factor: 7:1 up to WLL 42,5 ton. 6:1 for 55 and 85 ton.
- Material: Bow and pin alloy steel.
- Marking: According to standard.
- Temperature range: -40°C up to +200°C.
- Finish: Hot dip galvanized.
- Grade: 8
