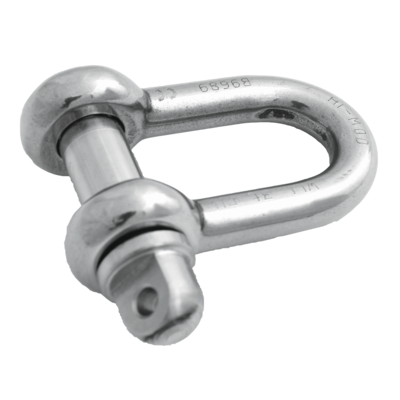

Design: Stainless steel D shackle, with pin. Good for lifting applications where a high level of corrosion resistance is required. Typical applications: Water utility installations & other corrosive facilities, Pump chains and pump lifting, Chemical installations - Chlorine plants etc, General lifting in off-shore applications, General lifting and tethering in leisure marine applications, General lifting purposes.


Proof load: 2x WLL

  • Material: Stainless Steel EN10088 1.4404 (Marine Grade 316L)
  • Marking: : WLL, CE, Supplier,
  • Finish: Polished
  • Safety factor: : 6:1

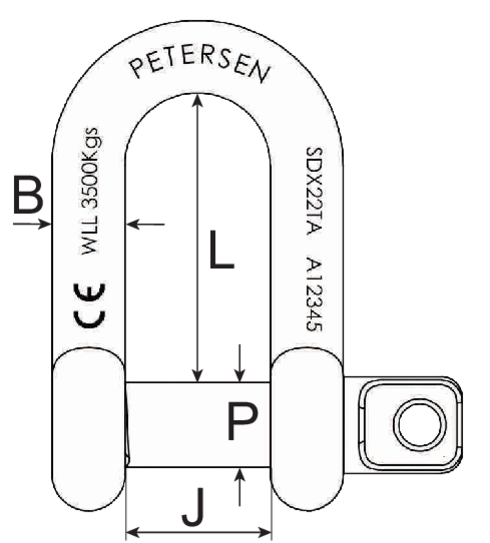

Shackle_316D_dwg2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
P
mm
B
mm
J
mm
L
mm
Weight
kg
11.39D04TA 0,13 4 4 8 16 0,01
11.39D05TA 0,20 5 5 10 20 0,01
11.39D06TA 0,33 6 6 13 25 0,02
11.39D08TA 0,50 8 8 16 32 0,05
11.39D10TA 0,8 9,5 9,5 19 38 0,1
11.39D11TA 1 11 11 22 44 0,15
11.39D12TA 1,25 12,7 12,7 26 52 0,24
11.39D16TA 1,66 16 14,3 29 58 0,45
11.39D19TA 2,33 19 16 32 64 0,59
11.39D22TA 3,5 22,2 19 38 76 1
11.39D25TA 4,5 25,4 22,2 44 88 1,9
11.39D28TA 5,5 28,6 25,4 51 102 2,9
11.39D32TA 6,5 31,8 28,6 57 114 3,1
11.39D35TA 7,5 34,9 31,8 64 128 4,35
11.39D38TA 9 38 34,9 70 140 5,3
