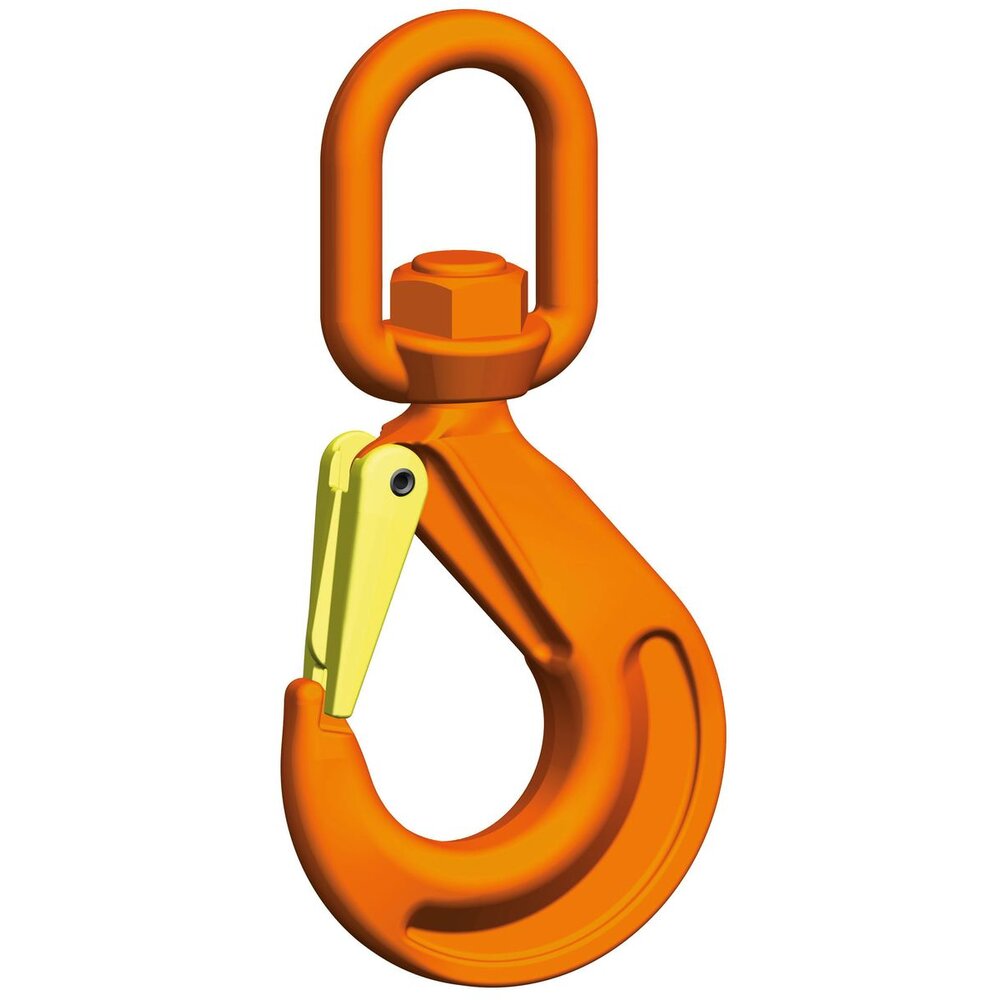

WSBW swivel hooks for pewag connex system.
Swivel hook with bearing to rotate when loaded.
Not for welded system.

  • Material: High duty
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Temperature range: -40ºC up to +120°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-2
  • Safety factor: 4:1
  • Grade: 10

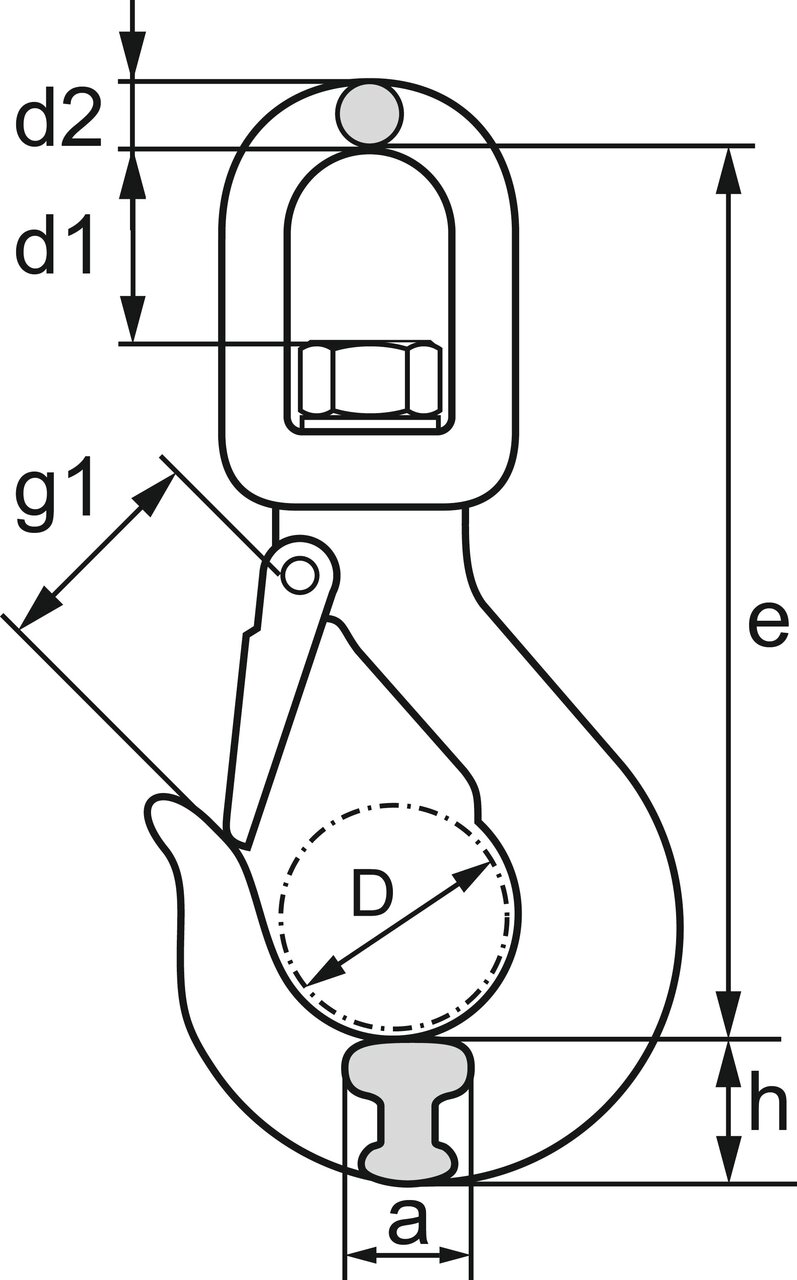

WSBW_drawing
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
a
mm
d1
mm
d2
mm
e
mm
g1
mm
h
mm
Weight
kg
11.1693072 WSBW 7/8 2,5 19 37 12 1 534 26 28 1,24
11.1693071 WSBW 10 4 25 41 16 183 30 33 1,84
11.1693073 WSBW 13 6,7 30 47 20 221 38 40 3,45
