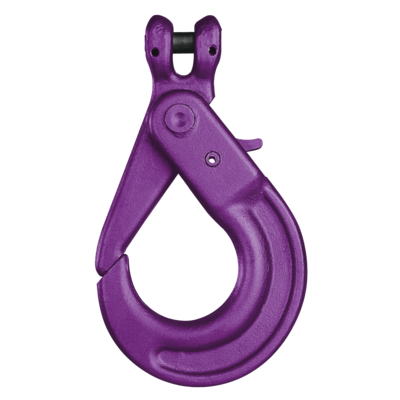

Safety Hook HKSB/S Grade 10 - Clevis

Material: Alloy steel grade 10.
Marking: According to chain dimension.
Finish: Painted.

WARNING! Not to be heat-treated.

Select a row from the table below, then click the add to quote button

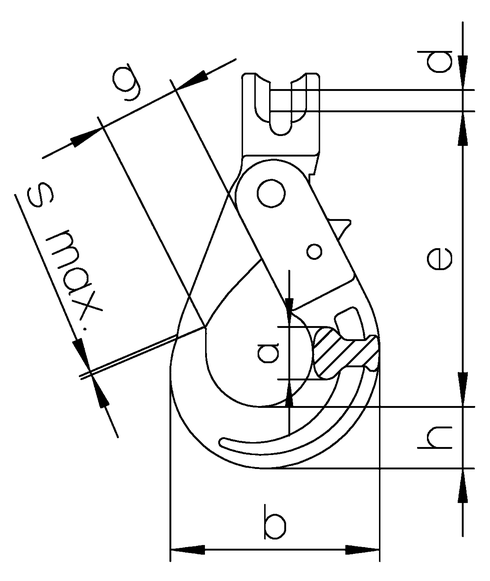

Part Code	Code	WLL ton	For chain gr 10 Ø mm	B mm	D mm	e mm	g mm	h mm	Weight kg
11.1634638	HKSB/S-6-10	1,4	6	71	7,5	94	28	20	0,5
11.1669966	HKSB/S-7-10	1,9	7	88	9	123	34	26	0,9
11.1634639	HKSB/S-8-10	2,5	8	88	10	123	34	26	0,9
11.163464	HKSB/S-10-10	4	10	107	13	144	45	30	1,6
11.1634642	HKSB/S-13-10	6,7	13	138	16	180	52	40	2,9
11.1634678	HKSB/S-16-10	10	16	168	21	217	60	50	5,8
