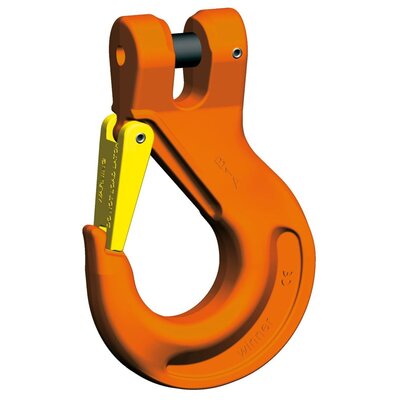

KHSW Clevis sling hooks are designed for the assembly of chain slings.
General purpose hook, can be used without transition link and without connecting link.
With forged safety catch.

  • Material: High duty grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-2
  • Safety factor: 4:1
  • Grade: 10

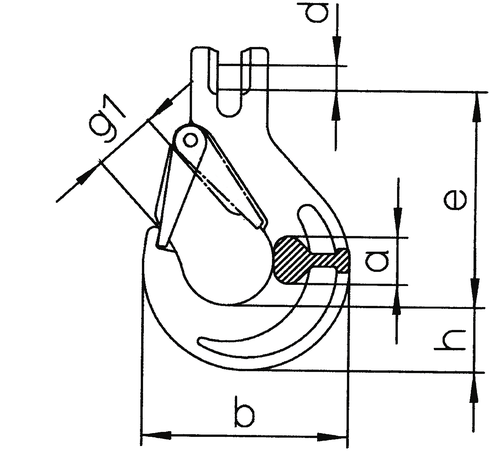

KHSW streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
a
mm
b
mm
d
mm
e
mm
g1
mm
h
mm
Weight
kg
11.1117753 KHSW 5/6 1,4 15 66 7 69 19 20 0,2
11.114890 KHSW 7 1,9 19 90 9 95 26 28 0,6
11.1117754 KHSW 8 2,5 19 90 10 95 26 28 0,6
11.1117755 KHSW 10 4 25 108 12 109 31 35 1,1
11.1117756 KHSW 13 6,7 34 131 16 136 39 41 2
11.1117757 KHSW 16 10 37 153 20 155 45 49 3,48
11.1160548 KHSW 19/20 16 51 177 24 184 53 53 5
11.1160551 KHSW 22 19 52 196 27 214 62 62 9
