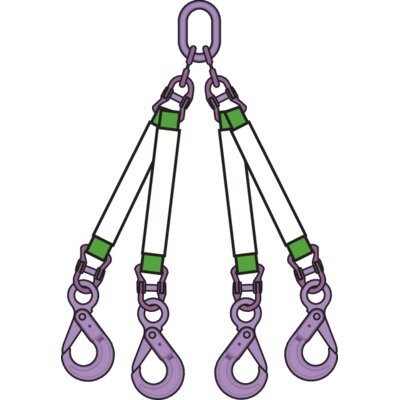

Roundsling Assembly RR-476

Design: Roundsling covered with extra protection sleeve and provided with strengthen eye in each end, assembled as tool in combination with lifting details in grade 8. Max manufacturing length 20 m.


Stretch with working load: 2-3%.

Length tolerance: Nominal length ±2%.

Safety factor:

Show more

Show table
Product number:

Design: Roundsling covered with extra protection sleeve and provided with strengthen eye in each end, assembled as tool in combination with lifting details in grade 8. Max manufacturing length 20 m.


Stretch with working load: 2-3%.

Length tolerance: Nominal length ±2%.

Safety factor: Forge 4:1 and round sling 7:1.

  • Material: Polyester. Resistant to most acids but not strong alkalizes.
  • Marking: According to standard, The slings are provided with a label with manufacturer’s symbol, working load limit (WLL) and CE marking.
  • Temperature range: app. -40° - +100°C.
  • Standard: EN 1492-2
  • Grade: 10

Multi-leg polyester sling

EN 1492-1 / EN 1677

1-part 2-part 3-4-part
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60°
Webbing Color Working load limit (WLL) in tons
Purple 1,0 0,8 2,0 1,4 1,0 2,1 1,5
Green 2,0 1,6 4,0 2,8 2,0 4,2 3,0
Yellow 3,0 2,4 6,0 4,2 3,0 6,3 4,5
Grey 4,0 3,2 8,0 6,4 4,0 8,4 6,0
Red 5,0 4,0 10,0 7,0 5,0 10,5 7,5
Brown 6,0 4,8 12,0 8,6 6,0 12,6 9,0
Blue 8,0 6,4 16,0 11,2 8,0 16,8 12,0
Orange 10,0 8,0 20,00 14,0 10,0 21,0 15,0
Orange 15,0 12,00 30,00 21,0 15,0 31,5 22,5
Orange 20,0 16,00 40,00 28,0 20,0 42,0 30,0
Orange 25,0 20,00 50,00 35,0 25,0 52,5 37,5
Factor (KL) 1 0,8 2 1,4 1 2,1 1,5
