• Not for lifting

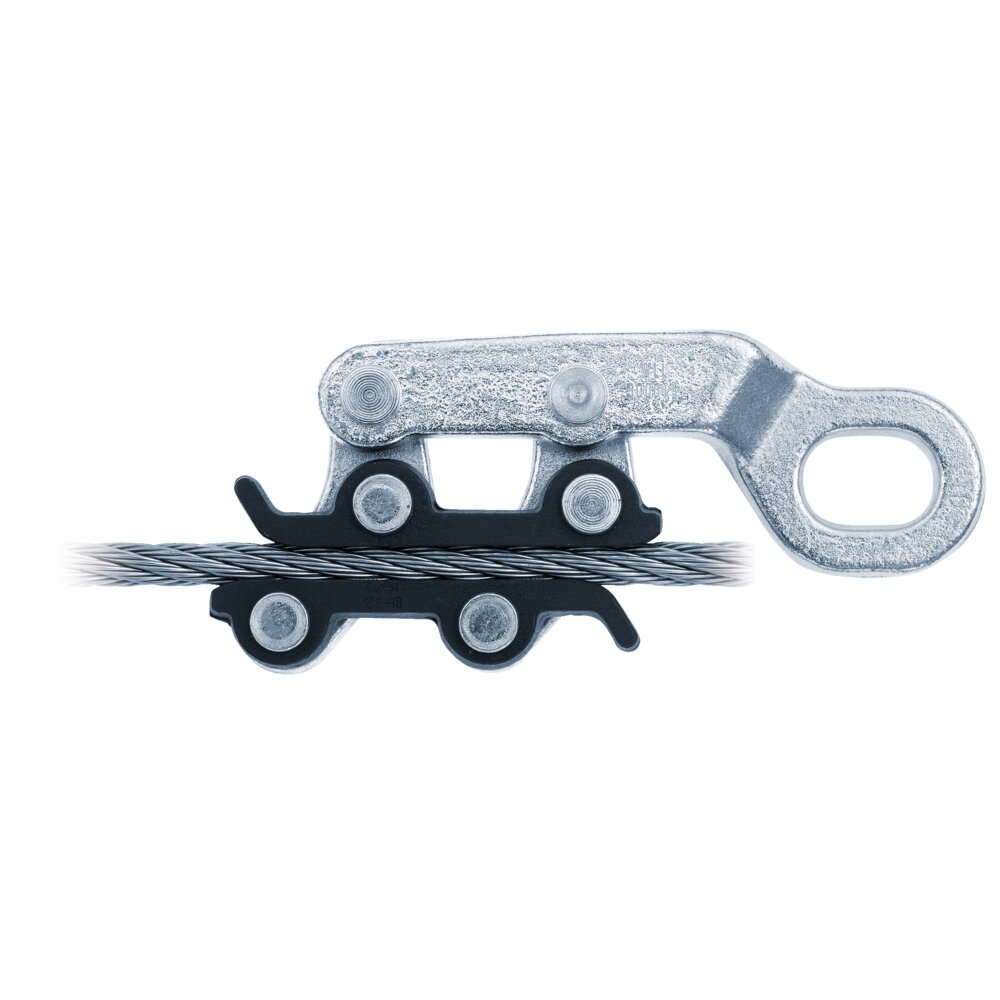

These wire grips are the ideal tool to safely stretch copper and steel cables. They have a wide range of applications in manufacturing, agriculture and bridge construction. The profile of the clamping jaws is specifically designed for copper and steel cables so that the stretched material does not become damaged.

  • Universal application: long, parallel tension clamping jaws made out of hardened and high-grade steel
  • Corrosion protection: galvanized and burnished components
  • Extremely durable and long-lasting: reliable, sophisticated process of cold-forming technology for the manufacturing of the jaws
  • Easy handling: ergonomic

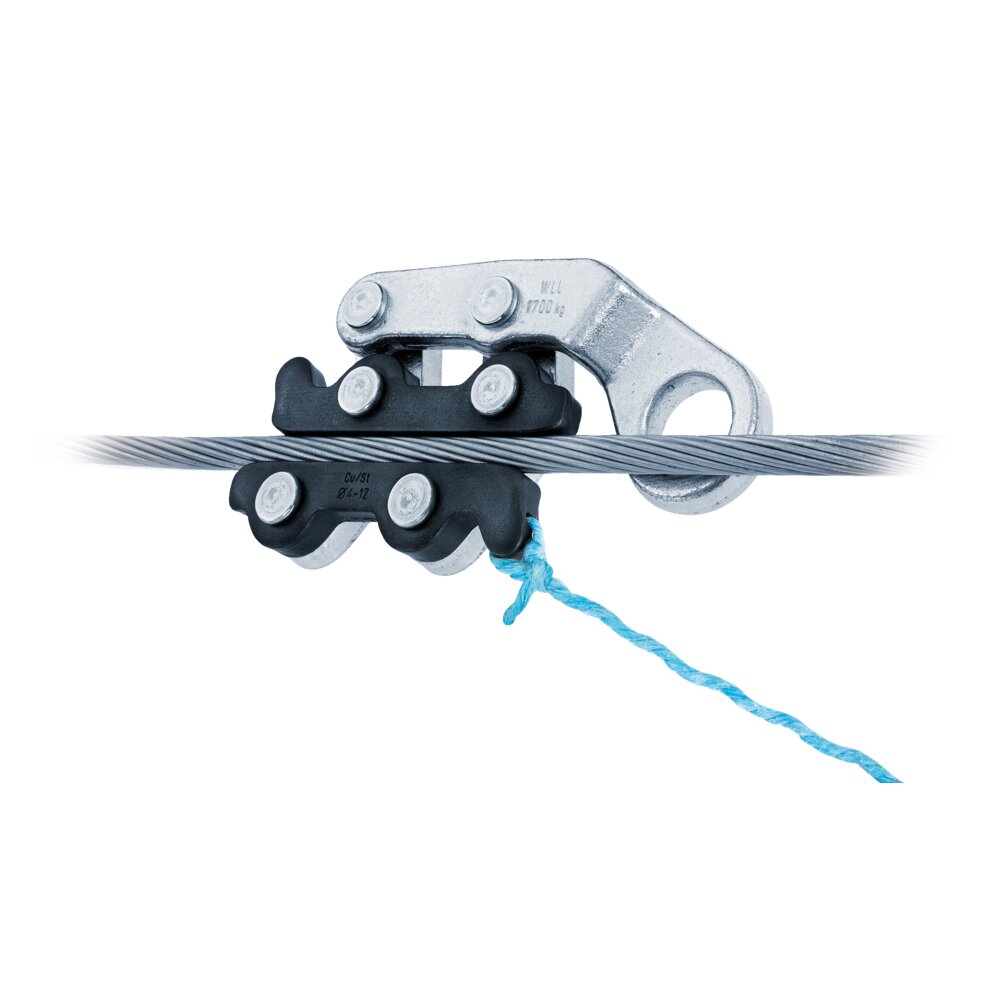

  • Remote release possible: hole in clamping jaw
  • Self-acting holding: spring effect on the tensioned cable
  • Slip-resistant holding of the cable even at maximum traction
      Wire Grips are the ideal tool to safely stretch copper and steel cables.
      Wire Grips are the ideal tool to safely stretch copper and steel cables.
      Select a row from the table below, then click the add to quote button
      Part Code Rope diameter
      mm
      MBL
      ton
      ton
      Stay rope
      mm²
      Eye size
      mm
      Capacity
      ton
      Weight
      kg
      10.4012504 1-5 1,25 1-16 20 0,5 0,25
      10.4012511 3-9 2,5 6-35 22 1 0,85
      10.4012528 4-12 4,5 16-70 27 1,7 1,27
      10.4012535 6-18 7 50-150 25x38 3 1,83
      10.4012542 10-28 8 90-400 30x40 3,5 4
      10.4012559 20-40 9 240-800 30x40 4 6
