• Not for lifting

General: Double stockings assembled with two clamps, used for wire rope change.
Design: Plaited of double wire ropes.


  • Material: Steel wire-coated with zinc.
  • Warning: Not for lifting.

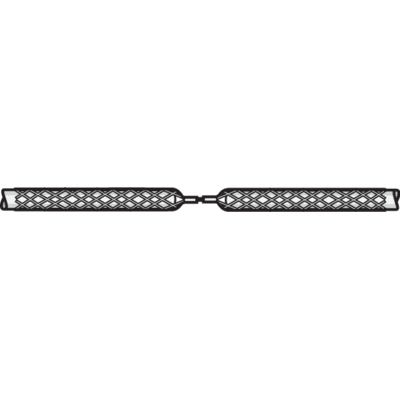

    Double clammped cable grip

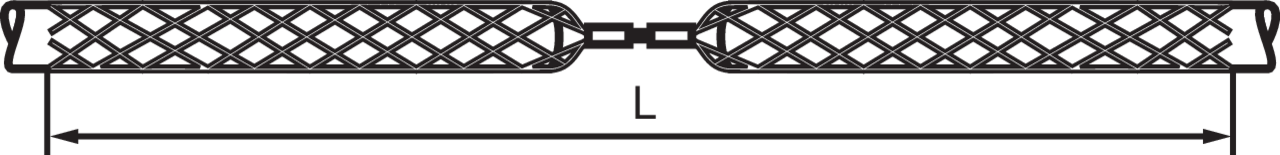

    Double clammped cable grip measurements
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    ton
    L
    mm
    Weight
    kg
    02.38KD0 KD-0 6-10 0,4 800 0,25
    02.38KD1 KD-1 10-15 0,85 800 0,35
    02.38KD2 KD-2 15-22 1,62 800 0,45
    02.38KD3 KD-3 22-32 3,75 1 220 0,75
    02.38KD4 KD-4 32-45 5,49 1 220 1,9
    02.38KD5 KD-5 45-55 5,49 1 220 2
    02.38KD6 KD-6 55-70 7,32 1 800 2,4
    02.38KD7 KD-7 70-90 7,32 1 800 2,6
    02.38KD8 KD-8 90-110 10,61 1 800 4,2
