• Not for lifting

These grips offer a flexible eye with double weave galvanized wire construction for general duty applications.
Standard fitted lengths of 600mm or 900mm are suitable for most applications, special grips to order.

  • Finish: Galvanized.
  • Note: A minimum safety factor of 3:1 for horizontal pulls and 5:1 for overhead pulling is recommended.

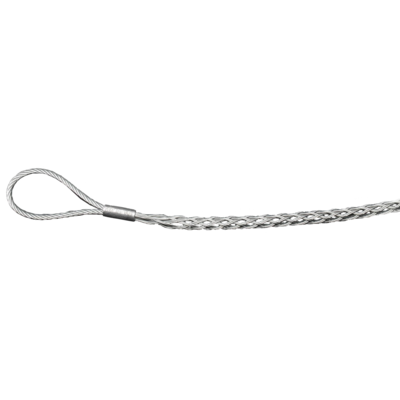

    Cable grip with eye for wire rope pulling

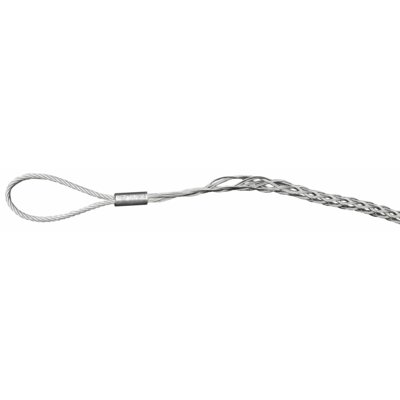

    Cable grip single support
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    ton
    L
    mm
    Weight
    kg
    10.42109000 106/6 6-10 1,5 600 0,12
    10.42109001 106/10 10-20 1,86 600 0,17
    10.42109002 106/20 20-30 2,26 600 0,22
    10.42109003 106/30 30-40 3,7 600 0,29
    10.42109004 106/40 40-50 5,49 600 0,63
    10.42109005 106/50 50-65 5,49 600 0,65
    10.42109012 109/65 65-80 7,32 900 1,2
    10.42109013 109/80 80-95 7,32 900 1,3
    10.42109014 109/95 95-110 10,61 900 2,1
