Terrier

Heavy duty clamp for safe lifting and transporting of steel (oil) drums. Single clamp application on empty or filled sealed drums. Filled open drums should be lifted by use of two clamps with a two leg chain sling.

Features:

  • With automatic locking mechanism
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request
  • Delivered with certificate.
  • Material: Alloy steel
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 40°C up to +100°C.
  • Standard: EN 13155

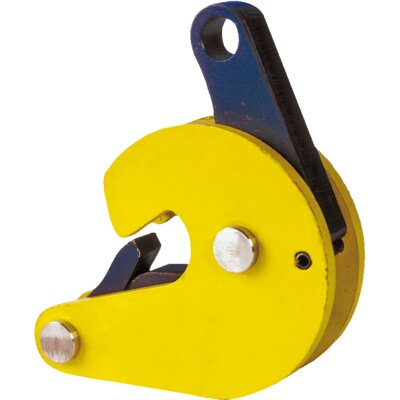

    Drum Lifting Clamp TVK
    Drum Lifting Clamp TVK angles at suspension
    Drum Lifting Clamp TVK on barrel

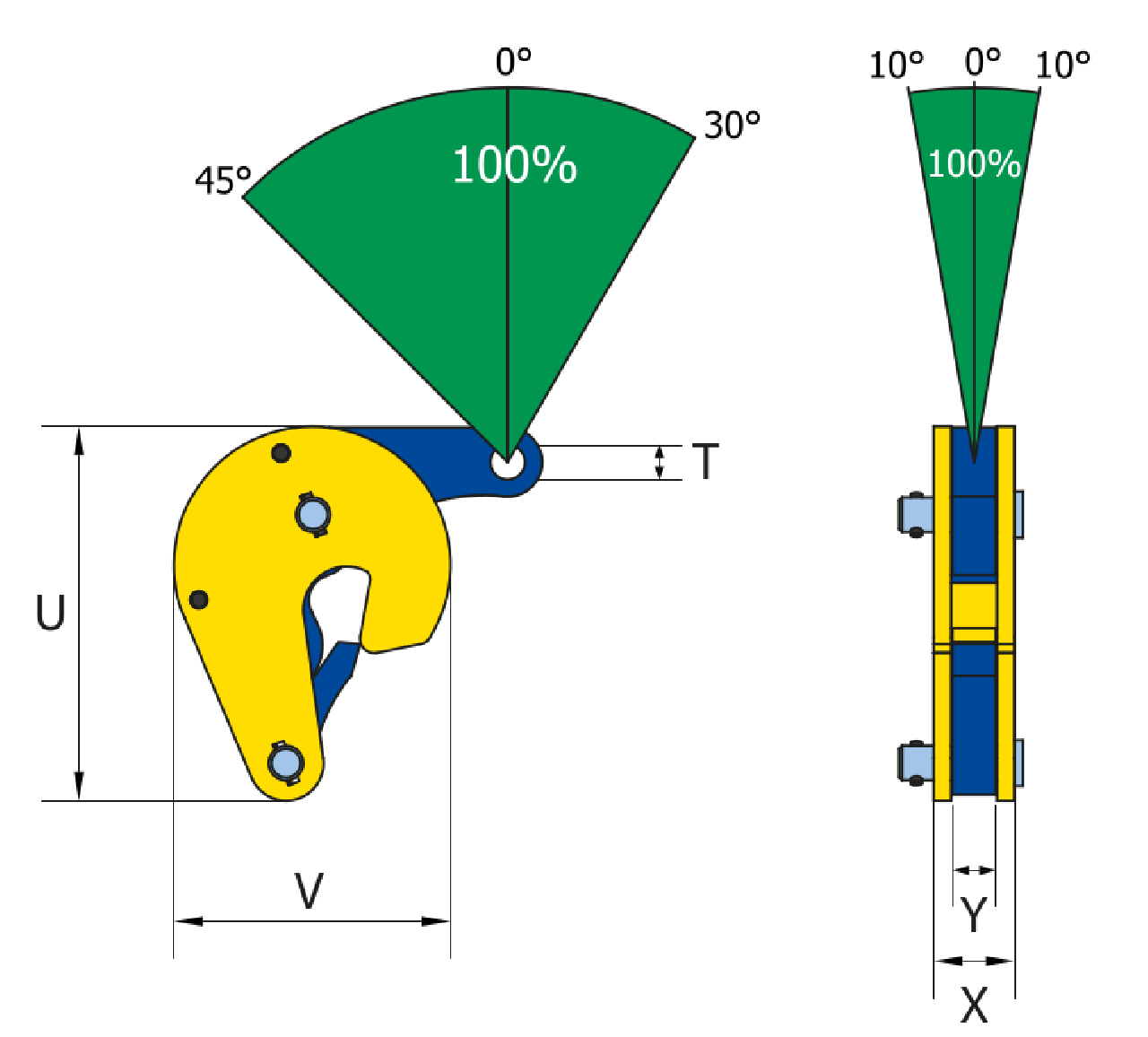

    Drum Lifting Clamp TVK angles at suspension Drum Lifting Clamp TVK drawing
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Jaw width
    mm
    U
    mm
    V
    mm
    T
    mm
    X
    mm
    Y
    mm
    Weight
    kg
    16.01828000 TVK 0,5 0-17 121 96 12 28 15 1,3
